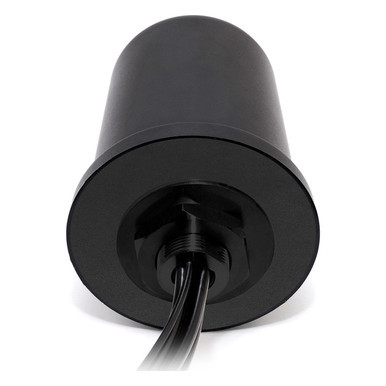

Ultra-Wideband 5-port Antenna for 4×4 MIMO and Active GNSS Systems
This high-performance multi-port antenna delivers simultaneous connectivity across 4G, 5G, Wi-Fi, and GNSS bands, enabling consistent communication for mobile and fixed applications. With four ultra-wideband MIMO elements and one active GNSS input, it supports advanced data routing, location tracking, and protocol diversity. Built with a rugged ASA UV-stable housing and rated IP67/IP69 for durability, this antenna suits permanent outdoor installations requiring reliable, high-gain performance.
Key Features
- 5-in-1 combination antenna design: Features four ultra-wideband ports for 4×4 MIMO communications and one active GNSS port, allowing separate or concurrent use of multiple wireless protocols in a single assembly.
- Supports sub-6 GHz wideband coverage: Covers an extensive frequency range of 617–5925 MHz, supporting 4G LTE, 5G NR, and Wi-Fi applications with backward compatibility to older networks.
- Active GNSS antenna with high gain: Integrated active GNSS element delivers 24 dB gain with post-filtering and supports input voltages from 2.7 to 5.5 V, offering accurate and interference-resistant satellite positioning.
- Ground plane independent operation: Performs reliably without the need for a metallic mounting surface, offering greater flexibility in mounting locations across plastic or non-metal enclosures.
- Durable construction with impact resistance: Built using UV-stable ASA plastic with a lightweight base and anti-rotation mounting, the unit is rated IK09 for impact protection and IP67/IP69 for dust and water resistance.
- Customisable cable and connector options: Designed with flexibility in mind, the antenna supports various cable lengths and connector types tailored to specific device or system requirements.
Deploy a rugged, high-efficiency solution with this 5-in-1 MIMO and GNSS antenna—designed for performance, flexibility, and long-term durability in challenging environments.
