This antenna combines wideband multi-application device functionality that caters to 5GNR, 4GLTE, 3G, 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The 2J4983P is a solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial, industrial and consumer industries.
2J4983P 5G NR Low Profile Adhesive Mount Antenna Feautres:
- Ultra-wideband antenna
- Sub 6GHz Bands 617-5925 MHz
- Full 4G LTE backwards capability
- Ground plane independent
- 3.5 dBi 5G NR peak gain
- High performance
- Low profile
- Customisable cable and connector
The 2J4983P brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward compatibility. In addition, this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). 2J4983P offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.
Suggested applications include:
- Automotive
- Industrial and Consumer IoT
- Telemetry
- Telematics
- Commercial and Home Automation
- HD Video High-Speed Streaming
- High Volume MIMO Networks

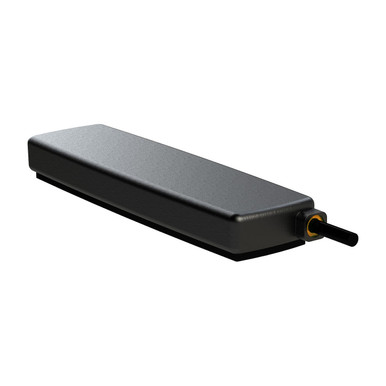

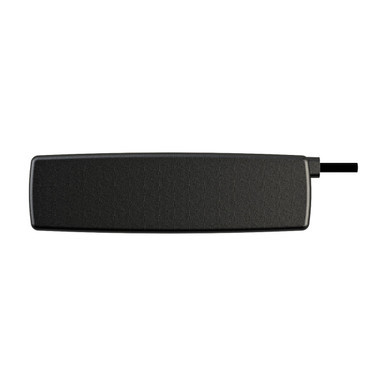

With overall dimensions of only 150.5 x 42 x 15.3 mm, high-quality adhesive tape and ASA UV stable housing, the 2J4983P can be installed on any surfaces found in the most extreme outdoor environments without any risk of failure. The 2J4983P features a standard SMA-Male connector and a 300 cm long LL195 cable. As an added measure, this antenna was designed with ground plane independence in order to eliminate any grounding restrictions during the installation process.
5GNR Antenna Bands list |
||||
|---|---|---|---|---|
| Parameters | 5GNR Antenna | |||
| Frequency (MHz) | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 |
| Band (MHz) | 600, 700, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 |
3300, 3500, 3600, 3700, 4500 | 5200, 5500, 5800 |
| 5GNR Bands | n5, n8 ,12, n20, n28, n71, n81, n82, n83, |
n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86 |
n77, n78, n79 | |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 |
B22, B42, B43, B48, B49, B52 |
B46, B47, B252, B255 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 |
B22 | |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | ||
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 |
||
| 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G | |
|---|---|
| Technologies | 5G, 4G, 3G and 2G |
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency (MHz) | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-8.2, ~-12.3, ~-8.6, ~-7.6 |
| VSWR | ~2.8:1, ~1.8:1, ~2.3:1, ~2.8:1 |
| Efficiency (%) | ~55.9, ~60.4, ~45.8, ~25.8 |
| Peak Gain (dBi) | ~2.2, ~3.5, ~3.0, ~0.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
