The 2J Mini-Shaker 4G Stud Mount Antenna (2J7624B) is designed to fit a wide range of installation requirements while keeping cost-effectiveness and reliable connectivity in mind. Designed with a low-profile housing, this antenna is ideal for high quality data and voice throughput for mobile, NB-IoT, LPWA, CAT-X/M and FirstNet applications that operate within 698 MHz to 2700 MHz frequencies.
FEATURES:
- Ground Plane Independent
- Wide Band Antenna
- 698-2700 MHz 4GLTE Bands
- 3.2 dBi 4G LTE Peak Gain
- Customizable Cable and Connector

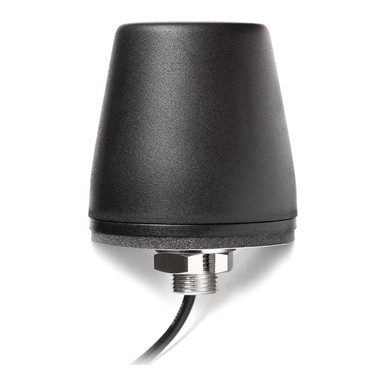

2J Mini-Shaker 4G Stud Mount Antenna (2J7624B)

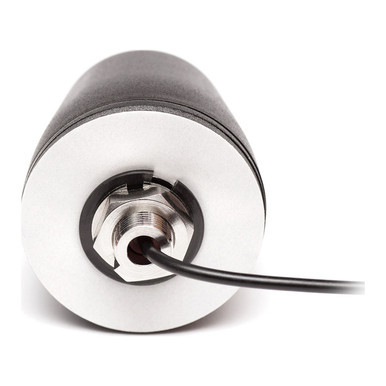

The 2J Mini-Shaker 4G Stud Mount Antenna is fully IP67 and IP69 rated with protection against ingress of moisture, water, dust, and high temperatures (-40C - +85C) without any compromise to antenna operations. The antenna housing is manufactured with commercial grade ASA material with a Zamak antenna base and double-sided foam gasket for extra protection. With compact measurements of Ø 50 x 50.8 mm make this ground plane independent antenna ideal for indoor or outdoor installations without restrictions. This antenna is tuned with a single 300 cm long DACAR100 cable that feeds through the anti-rotation screw mount and an SMA-Male end connection.
