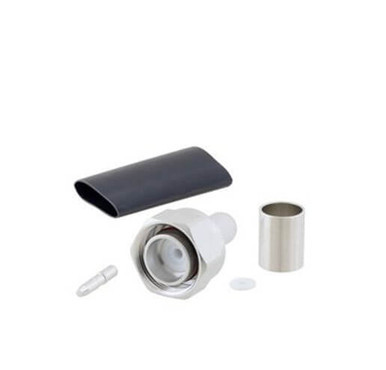

4.3-10 RF connectors are designed to meet the extreme demands of 5G equipment, supporting very high order modulation schemes like 256QAM, wide bandwidths, and extended operating bands up to 6 GHz. 4.3-10 Male connectors are typically found on a communication system's feeder cable. This crimp-style 4.3-10 Male connector terminates L-400 series braided cables, such as LMR-400 and PTL-400. This model of 4.3-10 Male connector is weatherproof when mated with a compatible Female connector.
- IP65 weatherproof when mated
- IEC 61169-54 standardised 4.3-10 Male interface
- Simple crimp cable termination
- Manufactured in an ISO 9001 accredited facility
Installation is a simple process. After preparing the cable, the pin is soldered onto the centre conductor and outer body pushed over the top until the pin sits flush. The ferrule is crimped using a standard 10.89 mm (.429″) hex die.
