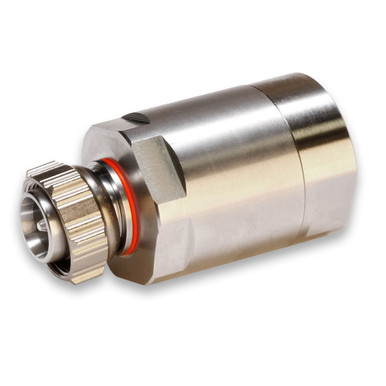

CommScope A5HM-D D-Class 4.3-10 Male Connector for 7/8 in AVA5-50 and AVA5-50FX Cable
The CommScope A5HM-D is a high-performance 4.3-10 male connector designed for 7/8 inch AVA5-50 and AVA5-50FX coaxial cables. It offers reliable connectivity for telecommunications and broadcast applications.
Key Features:
- Connector Type: 4.3-10 Male
- Compatibility: Fits 7/8 inch AVA5-50 and AVA5-50FX cables
- D-Class Performance: Ensures excellent signal transmission with low interference
- Easy Installation: Quick setup with standard tools
- Durable Construction: High-quality materials for harsh environments
- Compact Design: Space-efficient without compromising performance
- Weatherproof: Protects against moisture and corrosion
- Enhanced Signal Integrity: Low passive intermodulation (PIM)
- Versatile Applications: Ideal for telecommunications and broadcast systems
| Specification Category | Details |
|---|---|
| Product Type | Wireless and radiating connector |
| Product Series | AVA5-50 | AVA5-50FX | AVA5RK-50 |
| Ordering Note | CommScope® standard product (Global) |
| Body Style | Straight |
| Cable Family | AVA5-50 | AVA5-50FX |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
| 3rd Order IMD at Frequency | -166 dBc @ 1800 MHz |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 3.0 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Shielding Effectiveness | -130 dB |
| Frequency Band | VSWR | Return Loss (dB) |
| 0–1000 MHz | 1.020 | 40.09 |
| 1000–2700 MHz | 1.052 | 31.92 |
| 2700–3800 MHz | 1.065 | 30.04 |
