High-Performance Coaxial Cable with Broad Frequency Compatibility

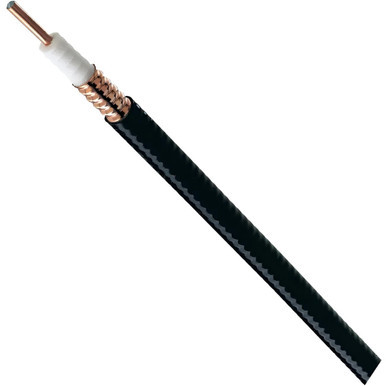

The CommScope LDF4-50RK is a 50-metre length of HELIAX® 5/8-inch superflexible coaxial cable designed for reliable signal transmission across a wide frequency range. Constructed with a corrugated copper outer conductor and copper-clad aluminium inner conductor, it ensures high conductivity and durability. Its black non-halogenated, fire-retardant polyolefin jacket provides added safety, making it suitable for demanding indoor and outdoor RF applications up to 6 GHz.
Key Features
- Wide Frequency Range: Operates from 1 MHz to 6100 MHz, suitable for various wireless and communication systems.
- Low Attenuation Performance: Provides efficient signal transmission with typical attenuation values guaranteed within 5%.
- Robust Construction: Built with a corrugated copper outer conductor and copper-clad aluminium inner conductor for strength and performance.
- Flexible Design: Rated for a minimum bend radius of 76.2 mm (single) and 203.2 mm (multiple), ideal for tight spaces.
- Fire-Retardant Jacket: Features a non-halogenated polyolefin jacket rated B2ca-s1a,d0,a1 for flame, smoke, and toxicity standards.
- High Power Handling: Supports up to 62 kW peak power and 0.51 kW average power at 6 GHz.
- Reliable Impedance: Maintains 50 ohms ±1 ohm for consistent signal matching in RF systems.
Engineered for high-frequency RF systems demanding reliability and safety.
| Product Specifications | |
|---|---|
| Model | LDF4-50RK |
| Cable Length | 50 Metres |
| Type | Superflexible Foam Coaxial Cable |
| Nominal Size | 5/8 Inch |
| Frequency Range | 1 – 6100 MHz |
| Impedance | 50 Ohms ±1 Ohm |
| Inner Conductor | Copper-Clad Aluminium |
| Outer Conductor | Corrugated Copper |
| Jacket Material | Non-halogenated, Fire Retardant Polyolefin |
| Jacket Colour | Black |
| Peak Power | 62 kW |
| Average Power @ 6GHz | 0.51 kW |
| Velocity | 88% |
| Minimum Bend Radius (Single) | 76.2 mm |
| Minimum Bend Radius (Multiple) | 203.2 mm |
| Cable Weight | 0.4 kg/m |
| Operating Temperature | -40°C to +60°C |
| Fire Performance | B2ca-s1a,d0,a1 (EN50575) |
