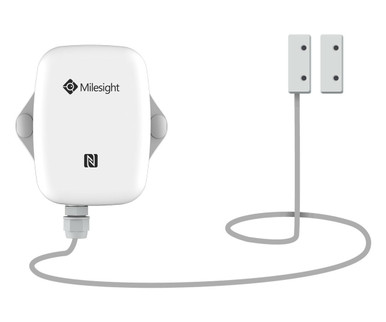

Alarming for Unauthorised Entry The EM300-MCS magnetic contact switch can be mounted to any door or window to detect an opening or closing event. It adds physical security monitoring to your location by alarming for intrusion or unauthorised entry to your monitored conditions.
Features:
- Security alarm for door or window opening
- Measures temperature between -40°C to 70°C
- Measures humidity between 0% and 100% RH
- IP67 water and dustproof
- Compatible with industry-standard LoRaWAN® gateways (range of up to 15km in rural areas and 2km in urban)
- 5-10 years of battery life. Comes with 1 x easily replaceable 4000 mAh Li-SOCL2 Battery. Use 2 for 10 years of battery life.
- Easy configuration through NFC from your mobile phone or PC
- Remote monitoring through Milesight IoT Cloud (Android & iOS)
Qty discount available. For more information or to discuss purchasing this product, please submit the form below.
Wireless Transmission
| Specification | Description |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16dBm (868)/20dBm (915)/19dBm (470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
Measurement
| Measurement Type | Specification | Description |
|---|---|---|
| Door Magnet | Detection Distance | 20-30 mm |
| Cable Length | 1.5 m | |
| Temperature | Range | -30°C to +70°C |
| Accuracy | 0°C to +70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) | |
| Resolution | 0.1°C | |
| Humidity | Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) | |
| Resolution | 0.5% RH |
Operation
| Specification | Description |
|---|---|
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
Physical Characteristics
| Specification | Description |
|---|---|
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries) |
| Battery Life* | 10 years (10 min interval + 48 triggers per day) |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | Transceiver: 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in) Magnet: 32 × 15 × 8 mm (1.25 × 0.59 × 0.31 in) |
| Installation | Wall Mounting |
Approvals
| Specification | Description |
|---|---|
| Regulatory | CE, FCC, RoHS |
