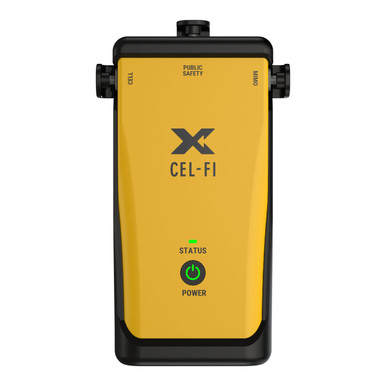

The CEL-FI COMPASS XR scanning receiver is the complete solution to enable integrators to install and optimise CEL-FI cellular and public safety coverage systems. A convenient tool in a lightweight and portable package, it can be used globally to deploy and verify multiple technologies, including 5G Radio networks in sub-6 GHz spectrum, LTE, CBRS, and LMR public safety coverage.
The CEL-FI COMPASS XR is a deep 5G-NR/4G-LTE/CBRS/FirstNet/LMR service scanner single tool for various networks.
FEATURES:
- Easily perform grid tests and site surveys with a portable handheld RF scanner.
- Ideal for deployment of CEL-FI QUATRA.
- Supports operator service bands worldwide with an ultra-wide frequency range of 617 - 5000 MHz.
- Comes with all necessary accessories, including a carrying case, hard storage case, antenna and RF adapters.
- Protected from drops, scraps, and tumbles with a rugged rubberized exoskeleton that provides a comfortable grip.
- Works with CEL-FI WAVE PRO app (IOS & Android) for all operations, including Full Signal Report export (.CSV) and more.
| Parameter | Details |
|---|---|
| Model Number | J11-900-100 |
| Description | Installation and Testing Tool for CEL-FI and SHIELD Systems |
| Processor | Single Board Linux Computer |
| Battery | Two rechargeable 3500 mAh, 3.7V protected 18650 cells (Included) |
| Charger | Included, with plug adapter types A, C, G, & I |
| Accuracy | +/- 2 dB |
| Operating Temperature Range | -20 to 60 °C |
| Charging Temperature Range | 0 to 45 °C |
| Weight (with Batteries) | 1.61 lb (730 g) |
| Size (with Exoskeleton) | 4.7 in (119.1 mm) W x 1.6 in (41.3 mm) D x 8 in (204.2 mm) H |
| Shipping Dimensions (W x D x H) | 16.5 in (419.1 mm) x 12.9 in (327.66 mm) x 7.3 in (185.42 mm) |
| Charging | USB-C |
| Antenna Ports | SMA Male (Three: Main, MIMO, LMR) |
| Power Button | LED Illuminated Button |
| LED Indicators | Three: Power, Status, and Charging |
| Bluetooth | LE Ver 4.2, Frequency: 2402 – 2480 MHz, Power: 0 dBm |
| Wi-Fi Access Point | Software upgradeable; enabled only when a Software Upgrade is in progress, while charging. |
| Band Support |
|
| Calibration | Calibration Certificate (LMR 700/800, U.S. only) |
| Certifications | FCC, ISED, CE |
| RF Cable | SMA Female to N-type Male (2 meter length) |
| RF Adaptors |
|
| Antennas | Three (3) 5GNR/UHF 410–5925MHz (Replacement model: Nextivity A21-ML3-600) |
| Battery Charger | 5V, 3.2A USB-C charger with 1-m cable and global plug adapters |
| Hard Case |
|
| Carrying Case |
|
