The Nextivity CEL-FI G41-JE represents the latest in 4G cellular repeater technology. Building on the success of the G32 model, G41 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
Operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider. CEL-FI G41 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone.
The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management. Expanding on G32’s dual-band functionality, G41 supports carrier aggregation with 40 MHz of relay bandwidth.
FEATURES:
- 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
- 3G, 4G, VoLTE, NB-IoT (G41 has 5G capabilities, but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra, Optus or Vodafone - one carrier at a time
- Up to 3000 m2 coverage area
- Two bands simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
- Powertec exclusive offer - 1-Year extra FREE WARRANTY (for a total of 3 years)

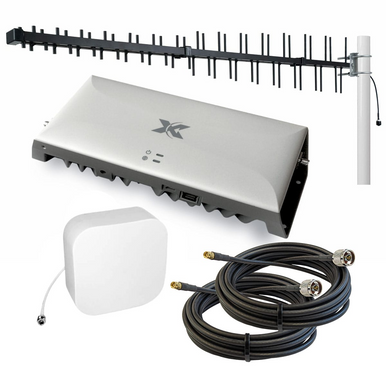

PACK INCLUDES:
- Nextivity CEL-FI GO G41-JE - Switchable between Telstra, Optus and Vodafone-TPG (one carrier at a time)
- Powertec Universal Ceiling-Wall Antenna 698-4000MHz
- LPDA 698-4000MHz
- PTL-240 10m + 6m Coaxial Cable N male to SMA Male
- 1m Ethernet cable
- 240v Power Supply
| Frequency Bands | 1/3/5/7/8/20/28L/28U/40 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App for manual setting) |
| Duplex Modes | FDD & TDD |
| # of Relay Bands (MHz max.) | 2 |
| Relay Bandwidth (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max.) | 20 |
| Output Uplink Power (Bands 1/3/5/7/40) (dBm max.) | 22 |
| Output Uplink Power (Bands 8/20/28L/28U) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom) | 50 |
