Reliable Protection for High-Voltage DC Systems

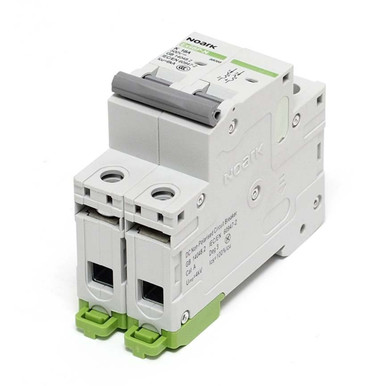

This high-performance 16A 360V DC circuit breaker is designed to safeguard critical electrical systems in high-voltage applications. With its two-pole configuration, it ensures reliable interruption of electrical currents, preventing potential damage and enhancing system safety. Engineered for durability and precision, it suits various industrial, marine, and off-grid setups.
Key Features
- 360V DC Rated Protection: Designed to handle high-voltage direct current, ensuring robust and reliable circuit protection.
- Two-Pole Configuration: Offers enhanced safety by simultaneously interrupting both poles in the circuit.
- 16A Current Capacity: Adequately rated for systems with moderate current requirements.
- Durable Construction: Built to withstand demanding conditions in industrial and marine environments.
- Compact Design: Saves space in electrical panels while maintaining efficient operation.
Enhance the safety and reliability of your high-voltage DC systems with this dependable circuit breaker, ensuring uninterrupted operation in critical applications.
| Electrical Parameters | |
|---|---|
| Tested Standard | IEC/EN 60947-2 |
| Rated Operating Voltage | 360V DC |
| Rated Breaking Capacity | 10 kA |
| Rated Current | 16A |
| Tripping Characteristics | K |
| Rated Impulse Withstand Voltage | 4 kV |
| Rated Insulation Voltage | 1000V DC |
| Electrical Service Life | 300 operation cycles |
| Line Voltage Connection | Non-specific, above or below |
| Mechanical Parameters | |
| Device Width | 18 mm per pole/module |
| Device Height | 83 mm (89 mm with rail clip) |
| Frame Size | 45 mm |
| Mounting | Easy fastening onto 35 mm DIN device rail |
| Degree of Protection | IP20 for terminals |
| Terminals | Combined lift + open mouthed |
| Terminal Capacity | 1 - 35 mm² |
| Fastening Torque of Terminals | 3.5 Nm |
| Busbar Thickness | 0.8 - 2 mm |
| Mechanical Service Life | 20,000 operation cycles |
| Ambient Temperature Range | -35°C to +70°C |
| Altitude Tolerance | ≤ 2000m |
| Relative Humidity | ≤ 95% at 20°C, ≤ 50% at 40°C |
| Resistance to Humidity and Heat | Class 2 |
| Pollution Degree | 3 |
| Installation Class | III |
