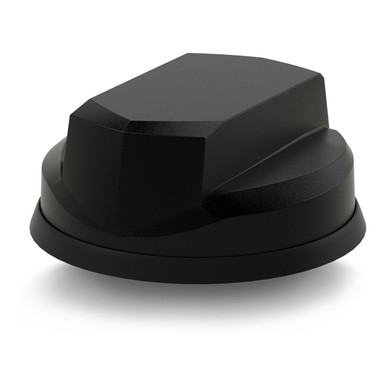

High-Performance Multi-Function Antenna for M2M Applications with Cellular, WiFi, and GPS/GNSS Coverage
This multi-function antenna is designed for applications where cost-effectiveness, efficiency, and robustness are crucial, such as vending machines, payment terminals, and other M2M devices. It integrates a 2×2 MIMO function for 2G/3G/4G/5G (698-3800 MHz), a 4×4 MIMO function for 2.4/5 GHz WiFi, and an active GPS/GNSS element, ensuring reliable performance even when mounted on non-metallic surfaces. Available with either a black or white radome, the antenna meets IK10 vandal resistance and IP69K ingress protection standards.
Key Features
- Up to 9 Elements: Includes two isolated high-performance antenna elements covering 617-960/1710-6000 MHz for MIMO/diversity at cellular/LTE frequencies.
- WiFi Support: Up to six optional dual-band elements covering 2.4 & 7.2 GHz for MIMO/diversity WiFi operation.
- High-Performance GPS/GNSS: Optional 26 dB gain LNA with high-quality filtering for unmatched positioning accuracy.
- Non-Metallic Mounting: Performs well even without a metallic ground plane, ideal for non-metallic surface installations.
- Durability: IK10 vandal resistance and IP69K ingress protection for reliable use in harsh environments.
| Product Specifications | |
|---|---|
| Frequency Range | 698-3800 MHz (Cellular), 2.4/5 GHz (WiFi) |
| Functionality | 2×2 MIMO (Cellular), 4×4 MIMO (WiFi), GPS/GNSS |
| MiMo/Diversity | Cellular (2×2), WiFi (4×4) |
| GPS/GNSS Performance | 26 dB Gain LNA with High-Quality Filtering |
| Mounting Surface Compatibility | Non-metallic surfaces |
| Radome Colour | Black or White |
| Ingress Protection | IP69K |
| Vandal Resistance | IK10 |
