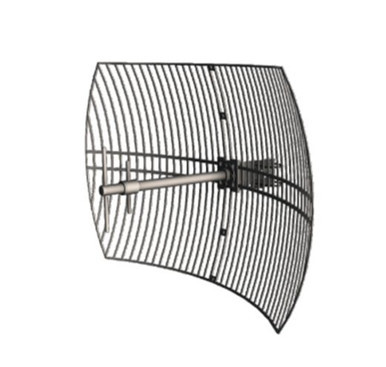

The Powertec Low Band Grid Antenna, 698 to 960 MHz, 14 dBi, N Female is one of the highest performing external antenna solutions available for poor 4G voice and data service. This antenna has been optimised for long range 4G connectivity, tuned specifically for frequencies used in regional and remote areas. This Grid antenna covers the cellular bands between the 700 and 960 MHz range with a very high 14 dBi peak gain. Gain of this magnitude focuses maximum energy in the direction of the cell tower, while still maintaining a reasonable beamwidth to capture reflected and scattered signal. By narrowing the operating frequency range to just the lower cellular band, maximum radiated efficiency is achieved, and no energy is wasted on short-range frequencies.
FEATURES:
- Ruggedised construction for Australian conditions
- Solid aluminium feed, powder coated cast aluminium reflector.
- Stainless steel mounting clamp included.
- 30 cm tail with an N-Female connector.
Powertec’s Low Band Grid Antenna covers regional 4G frequencies, such as Band 28 700 MHz LTE, and the new low band 5G frequencies such as n5 and n8 (NR850, NR900).
