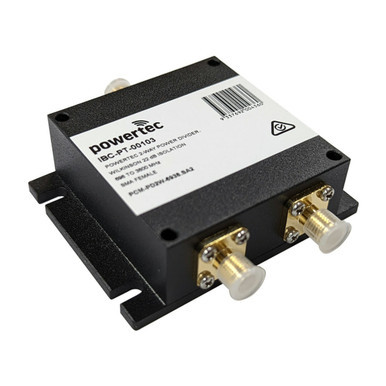

Compact RF Splitter for Precise Two-way Signal Distribution
The Powertec RF Power Divider 2-Way offers efficient signal splitting across a broad 698 to 3800 MHz frequency range. Designed for indoor RF applications, this compact, SMA-connected unit ensures high isolation and low insertion loss for clean and consistent signal performance in professional telecommunications setups.
Key Features
- Wide Frequency Range: Supports 698 to 3800 MHz, ideal for multiband RF systems.
- Two-Way Power Division: Splits input signal evenly into two balanced output channels.
- High Isolation: ≥22 dB isolation reduces signal coupling and cross-interference.
- Low Insertion Loss: ≤0.9 dB insertion loss ensures signal strength is preserved.
- SMA Female Connectors: Provides secure RF connectivity in compact systems.
- High Power Handling: Rated for up to 50 W input power for demanding applications.
- Efficient Microstrip Design: Ensures high-performance distribution with minimal space usage.
- Durable Build Quality: Engineered to withstand operational temperatures from -25 °C to +70 °C.
- Lightweight and Compact: Measures just 66 x 52 x 21 mm and weighs only 180 g.
- IP60 Enclosure Rating: Offers dust protection for safe and reliable indoor use.
Designed for in-building coverage and distributed RF systems, this power divider delivers reliable performance in modern telecom environments.
| Product Specifications | |
|---|---|
| Frequency Range | 698 to 3800 MHz |
| Power Division | 2-Way |
| Connector Type | SMA Female |
| Isolation | ≥22 dB |
| Insertion Loss | ≤0.9 dB |
| Distribution Loss | 3.0 dB |
| Input Power Rating | 50 W Maximum |
| VSWR | ≤1.3 |
| Operating Temperature | -25 °C to +70 °C |
| Dimensions | 66 x 52 x 21 mm |
| Weight | 180 g |
| Enclosure Rating | IP60 |
| Compliance | ROHS |
