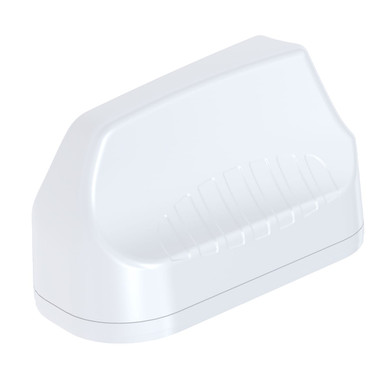

MIMO-3-12, a 2-in-1 Transportation & Automotive Antenna offering 410 - 3800 MHz frequency range with 2X2 LTE (MIMO) technology. Boasting a 5.8dBi gain and IP69K robustness, it's perfect for commercial, industrial, and marine use, ensuring reliable connectivity across multiple networks and futureproofed for 5G applications. Its excellent balance between omni-directionality, pattern diversity, and effective radiation capabilities make this antenna crucial for the transportation and marine markets.
Features:
- Multi-Frequency Support: Supports a wide range of frequencies from 410 MHz to 3800 MHz, encompassing 2G, 3G, 4G, LTE, and 5G bands.
- 2X2 MIMO LTE: Enhanced data throughput and signal quality via 2X2 MIMO technology.
- Ultra-Wideband Coverage: Includes 450 MHz and 3.5 GHz CBRS bands, making it versatile for different cellular networks.
- Robust Design: IP69K water-resistant rating, ensuring durability in harsh environmental conditions.
- Versatile Applications: Ideal for transportation, marine use, commercial/industrial vehicles, and M2M/IoT systems.
- Easy Installation: Offers multiple mounting options including magnetic, spigot, and surface/desk mount for flexible installation.
| Specification | Description |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas, Transportation & Mobility Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G), CDMA450/LTE-M 450 |
| Frequency Band | 410-450MHz, 433MHz, 450-470MHz, 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz |
| Frequency Range | 410 – 3800 MHz |
| Gain | 5.8dBi (LTE) |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n31, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n72, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B31, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B72, B73, B74, B85, B87, B88, B103, B106 |
| Mounting Type | Magnetic Mount, Spigot Mount, Surface/Desk Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | SMA |
| MIMO | 2×2 |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| Enclosure Name | Badger |
| Enclosure Size | Medium |
| LTE Ports | 2 |
