Compact 5-in-1 Antenna Solution for Multi-Network Connectivity in any Setting
This low-profile antenna integrates five high-performance elements into a single, rugged housing—supporting 2×2 MIMO for both cellular and Wi-Fi, alongside an active GPS/GLONASS module. With wideband frequency support from 617 to 7200 MHz and an IP69K-rated design, it is engineered for demanding environments such as transport, marine, smart utilities, and industrial IoT deployments.
Key Features
- 5-in-1 multifunction antenna for cellular, Wi-Fi, and GNSS: Combines 2×2 MIMO for LTE/5G, 2×2 MIMO for dual-band Wi-Fi, and one active GPS/GLONASS element—reducing the need for multiple external antennas.
- Covers 617 to 7200 MHz for full technology compatibility: Supports all contemporary cellular bands including 4G and 5G NR, along with dual-band Wi-Fi, making it ideal for diverse regional and global deployments.
- Advanced omnidirectional MIMO performance: Offers stable and balanced signal reception through its MIMO configuration, improving data throughput and connection reliability in high-traffic or mobile environments.
- IP69K-rated for outdoor durability: Built to withstand water, dust, and high-pressure conditions, the housing is vandal-resistant and fully protected against harsh weather and challenging environmental conditions.
- Flexible mounting options for seamless integration: Supports spigot, magnetic, adhesive, wall, and pole mounts to simplify installation across vehicles, buildings, cabinets, and smart infrastructure systems.
- Active GPS/GLONASS system with strong signal acquisition: Integrated GNSS functionality provides accurate positioning with high gain and post-filtered signal processing for interference reduction.
- Certified to international standards: Fully compliant with CE, RoHS, and ISO 9001:2015 standards, offering assurance of quality, safety, and environmental responsibility across global markets.
Streamline your connectivity with a robust, all-in-one antenna engineered for performance, resilience, and adaptability across smart, mobile, and industrial environments.
| Category | Specification | Details |
|---|---|---|

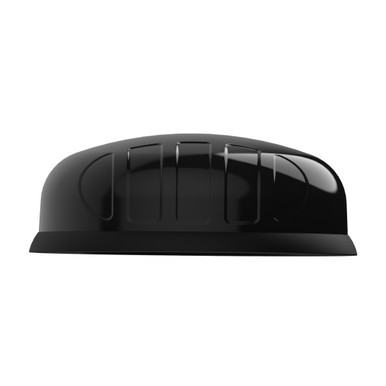

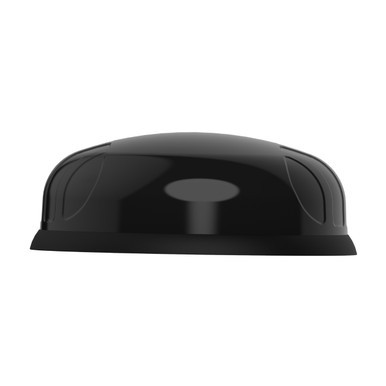

| Model Version | Poynting PUCK-5-V2 | 4G-5G 5-in-1 Transportation Antenna |
| Frequency Range | Cellular | 617 – 6000 MHz (2x2 MIMO) |
| Wi-Fi | 2400 – 7200 MHz (2x2 MIMO) | |
| GPS | 1575.42 MHz 1602 MHz |
|
| Gain | Cellular | 5G: 6.5 dBi, Wi-Fi: 6 dBi GPS: 20±3 dBi |
| VSWR | Cellular | <2.5:1 |
| Gain | Wi-Fi | 4 dBi @ 2400-2500 MHz 6 dBi @ 5000–7200 MHz |
| Temperature Range | Operating | -40 °C to +80 °C |
| Dimensions | Product | Ø99.3 mm x 36 mm |
| Packaged | 150 mm x 150 mm x 120 mm | |
| Weight | Net Weight | 0.523 kg |
| Packaged Weight | 0.70 kg | |
| Mounting Type | Options | Spigot Magnetic Adhesive Wall Pole |
| Environmental Protection | IP Rating | IP69K (Waterproof) |
| Compliance | Regulatory | RoHS 2011/65/EU Compliant ISO 9001:2015 |
