High-Performance Wideband Antenna for 4G and 5G Connectivity

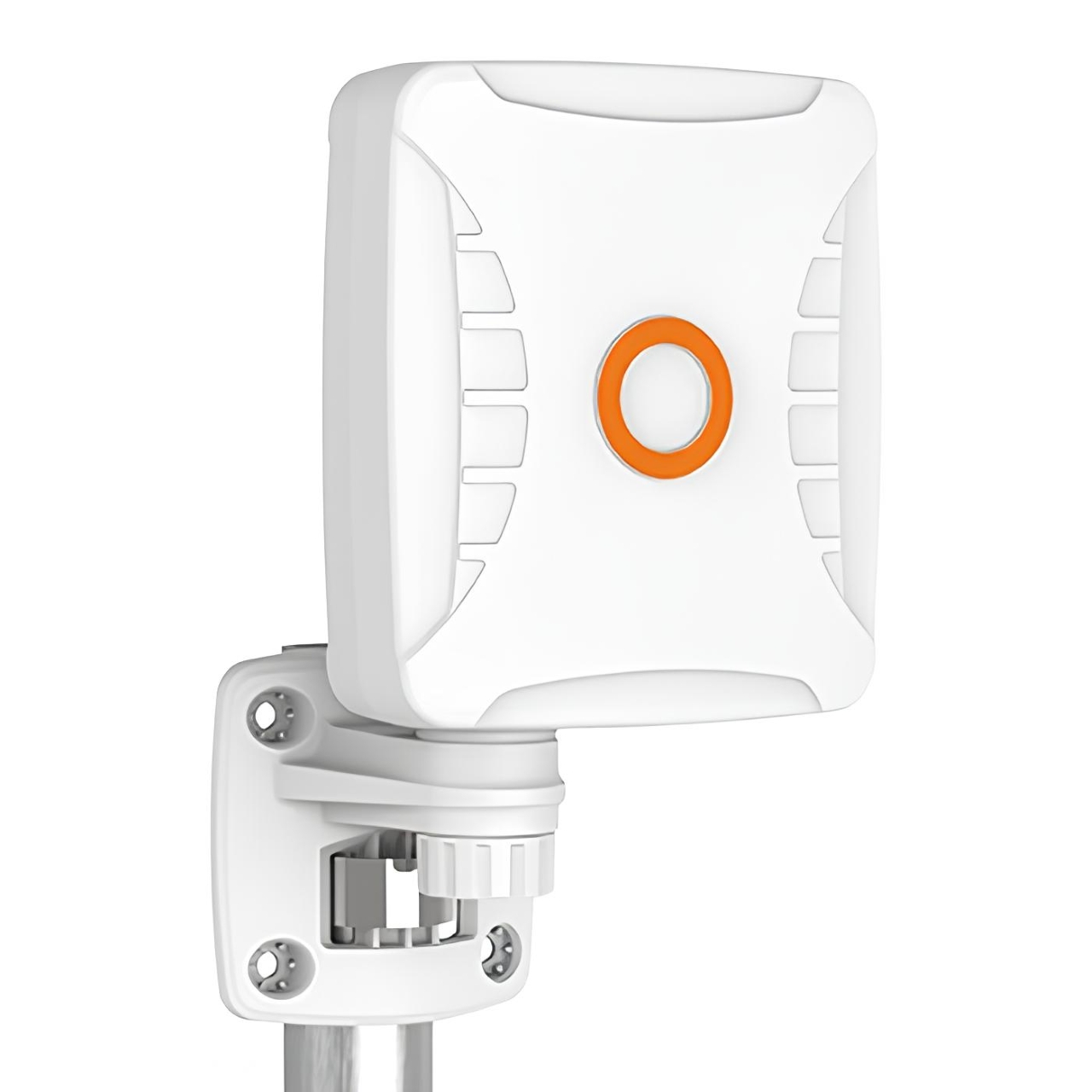

The XPOL-1-5G+ is Poynting’s third-generation cross-polarised MIMO antenna, redesigned with a new enclosure and advanced elements for superior performance. Covering ultra-wideband frequencies from 410 to 6000 MHz, it supports multiple operators and technologies, making it ready for current and future 5G applications. With peak gains up to 7 dBi, omni-directional coverage, and a robust IP65 housing, it provides reliable, high-speed connectivity for fixed wireless access, small businesses, and mobile deployments.
Key Features
- Ultra-wideband coverage: Operates from 410 MHz to 6000 MHz, supporting 4G LTE and 5G.
- High-gain performance: Delivers up to 7 dBi peak gain for improved signal and coverage.
- Cross-polarised MIMO design: 4×4 MIMO with +45°, -45°, vertical, and horizontal polarisation for enhanced throughput.
- Omni-directional radiation: Ensures wide-area coverage with consistent performance across bands.
- Durable enclosure: Weather, dust, and vandal resistant with IP65 protection.
- Flexible installation: Wall, pole, and window mounting options included.
- Built for harsh conditions: Wind survival up to 250 km/h, UV-stable radome, and operating range of -40 °C to +80 °C.
This antenna is ideal for fixed wireless access, home and office connectivity, and as a backup option for fibre or Starlink installations, ensuring dependable broadband access in all environments.
| Product Specifications | |
|---|---|
| Frequency Range | 410 – 6000 MHz |
| Polarisation | Cross Polarised (+45°, -45°, Vertical, Horizontal) |
| Gain | -4 dBi @ 410–470 MHz; 1.5 dBi @ 617–960 MHz; 2 dBi @ 1427–1517 MHz; 6 dBi @ 1710–2700 MHz; 7 dBi @ 3300–4200 MHz; 5 dBi @ 4400–6000 MHz |
| Peak Gain | 7 dBi |
| VSWR | ≤2.5:1 across 90% of bands |
| MIMO Support | 4x4 MIMO |
| Connector Type | SMA Male (factory mounted) |
| Cable Type & Length | HDF 195, 5 m |
| Input Impedance | 50 Ohm |
| Max Input Power | 10 W |
| Ingress Protection | IP65 |
| Dimensions (mm) | 246 × 157 × 88 (including bracket) |
| Weight | 1.05 kg (1.45 kg packaged) |
| Mounting Options | Pole, wall, or window mount |
| Wind Survival | ≤250 km/h |
| Operating Temperature | -40 °C to +80 °C |
| Environmental Resistance | UV-stable ASA radome, IK10 impact rating, UL 94-HB flammability |
| Compliance | CE, RoHS, ISO 9001:2015 |
