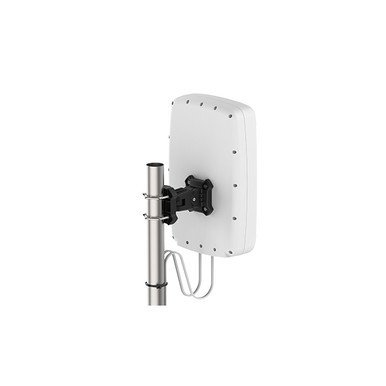

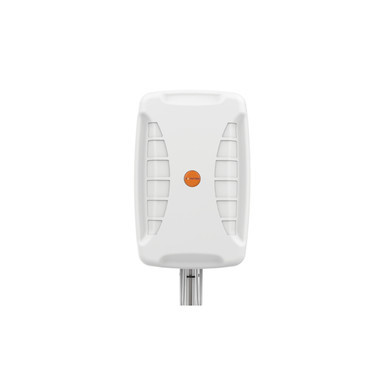

Discover the XPOL-24, a high-performance X-Polarised Uni-Directional 4x4 MIMO 5G/LTE Antenna, featuring advanced metamaterial technology for exceptional wideband coverage across 617 - 4200 MHz with an 11dBi gain. Ideal for diverse applications in urban, rural, commercial, and industrial settings, its robust IP65-rated design ensures durability against environmental challenges, making it a superior choice for current and future 5G/LTE networks.
Please call our office on 07 55770500 to be notified when the product becomes available.
Features:
- Exceptional high-performance antenna over main 5G/LTE bands
- New advanced metamaterial technology for high performance
- Wideband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
- Four cross-polarised antennas within a single enclosure
- Weather, dust and vandal resistant enclosure with IP65 raing
| Specification | Description |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas, Farming & Agricultural Antennas, Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz, 3800-4200MHz |
| Frequency Range | 617 – 4200 MHz |
| Gain | 11dBi |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| Directionality | Uni-Directional |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
| Mounting Type | Pole Mount, Wall Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | SMA (m) |
| MIMO | 4×4 |
| Polarisation | X-Polarised |
| Environmental | IP65 |
| Enclosure Name | Lion |
| Enclosure Size | Large |
| LTE Ports | 4 |
