Revolutionize your building’s cellular connectivity with the Nextivity CEL-FI G41-JE and Wideband LPDA Antenna pack. This powerful combo delivers up to 3000 m2 coverage with +20 dBm output, multi-band support, and remote management. The lightweight LPDA antenna enhances signal with up to 9.5 dBi gain, perfect for large-scale indoor cellular solutions.

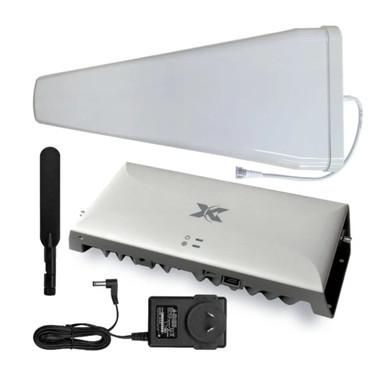

Nextivity CEL-FI G41-JE Building Wideband LPDA Pack inc. Paddle Antenna
The Nextivity CEL-FI G41-JE Building Wideband LPDA Pack, including a Paddle Antenna, is a comprehensive solution designed to enhance 4G cellular reception in large buildings. It combines the advanced features of the CEL-FI GO G41 with the efficiency of a Wideband LPDA Antenna, making it ideal for improving cellular connectivity in extensive indoor spaces.
CEL-FI GO G41 Features:
-
Enhanced Output Power
Boasts a higher output power (+20 dBm) compared to the G32 model, ensuring a larger coverage area.
-
Carrier Flexibility
Easily switchable between Telstra, Optus, and Vodafone-TPG networks, accommodating changes in service providers.
-
Large Coverage Area
Offers up to 3000 m2 of coverage, suitable for extensive inbuilding applications.
-
Advanced Connectivity
Supports 3G, 4G, VoLTE, NB-IoT, and carrier aggregation with up to 40 MHz of relay bandwidth.
-
Remote Management
Includes an RJ45 Ethernet port for connection to the internet, enabling live monitoring and control via the WAVE Portal.
-
Frequency Bands
Operates on 700L/850/900/1800/2100/2600 MHz, with dual-band simultaneous relay.
Wideband LPDA Antenna Features:
-
High Gain
Provides 8-9.5 dBi gain across various bands, ensuring strong signal reception.
-
Compact Design
Lightweight and small, making it easy to install and ideal for areas where a simple rooftop antenna can significantly improve signal strength.
-
Inclusions
Comes with a mounting clamp, a 30 cm tail with an N Female connector, and 10 m of PT240 cable with N Male to SMA Male connectors.
Technical Specifications:
| CEL-FI GO G41-JE | Wideband LPDA Antenna |
|---|---|
| Coverage: Up to 3000 m2 | Gain: 8-9.5 dBi |
| Frequency Bands: Multi-band | Frequency Range: 698-4000 MHz |
| Output Power: +20 dBm | Connector: N Female, SMA Male Cable |
| Remote Management: Via WAVE Portal | Design: Lightweight, Compact |
| Ethernet Port: Yes | Mounting: Clamp Included |
This combined pack is an ideal choice for anyone looking to enhance cellular connectivity in large buildings, offering high performance, flexibility, and easy installation.
