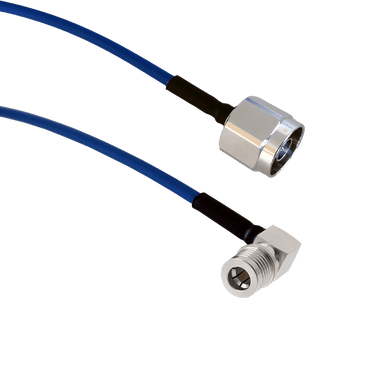

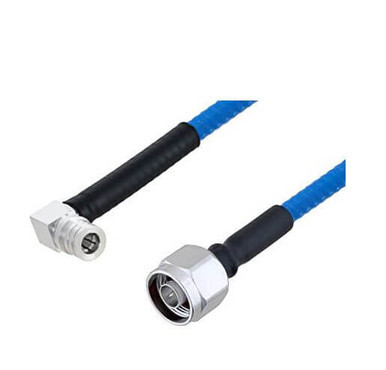

The Powertec 50 cm 0.141" Semi Flex series RF Cable Assembly is a top-quality solution for professionals who demand the best. Operating over the DC to 6 GHz frequency band, this cable boasts a tough blue FEP outer jacket and connectors manufactured from brass material with a nickel and ternary-alloy plating. This factory-terminated coaxial cable assembly is a low PIM patch cable designed to connect Quatra repeaters from a passive component such as a power divider or coupler. Our ISO 9001 quality management system ensures that this cable meets the highest standards for performance and reliability. The cable has a low-PIM N Male and Right Angle QMA Male connector arrangement.
RG-402 is a 0.141" Semi Flex cable type used a very high performance patching cable. This cable type is required to meet the high electrical performance requirements imposed by LTE-A Pro, 5G, and other advanced wireless technologies. 0.141" Semi-Flex cables like RG-402 use a tin-soaked copper braid to provide near 100% RF shielding, low PIM, very low loss, all while retaining malleability.
General Specifications | Nut | Brass, Nickel plated |
| Body | Brass, Trimetal plated |
| Insulator | PTFE |
| Centre Conductor | Brass, Gold plated |
| Standard | IEC 60169 |
Electrical Data | Impedance | 50Ω |
| Frequency Range | DC to 6 GHz |
| VSWR | ≤1.3:1 |
| PIM | ≤ -150 dBc |
| Dielectric withstanding voltage | ≥ 1000 V |
| Insulation resistance | ≥ 5000 MΩ |
