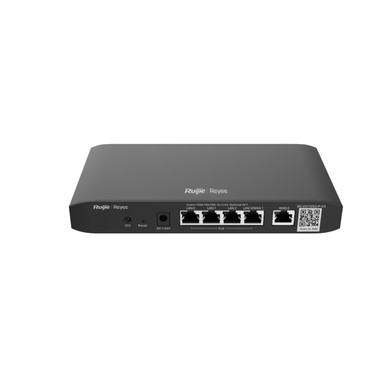

Power your Network with a High-Performance 5-Port Gigabit PoE Gateway
This advanced 5-port Gigabit PoE gateway is designed to provide seamless connectivity and efficient power distribution for small to medium-sized networks. With integrated PoE capabilities, it simplifies device deployment by delivering both data and power through a single cable. Featuring intelligent traffic management, security protection, and cloud-based remote management, it ensures a stable and secure networking experience. Its robust construction and energy-efficient design make it an ideal solution for businesses, offices, and smart home applications.
Key Features
- 5-port Gigabit connectivity for high-speed performance: Delivers ultra-fast data transmission for reliable networking.
- PoE support for simplified deployment: Powers connected devices such as IP cameras and access points without additional adapters.
- Intelligent traffic management for optimal performance: Ensures smooth data flow with advanced QoS and bandwidth control.
- Enhanced security for network protection: Provides firewall capabilities and threat prevention for a secure connection.
- Cloud-based management for remote monitoring: Enables easy configuration and monitoring via the Ruijie Cloud app.
Designed for reliability and efficiency, this 5-port Gigabit PoE gateway is an excellent choice for secure and high-speed networking.
| General | |
|---|---|
| Number of Fixed WAN Ports | 1 |
| Number of Fixed LAN Ports | 3 |
| Number of WAN Ports | 2 |
| Number of LAN Ports | 4 |
| WAN Port Rate | 1x 10/100/1000BASE-T |
| LAN Port Rate | 4x 10/100/1000BASE-T |
| Total Number of RJ45 Ports | 5 |
| PoE | |
| PoE Support | IEEE 802.3af/at, 4 LAN ports |
| Max. PoE Power Budget | 54W |
| Max. Power Output per PoE Port | 30W |
| Hardware Specifications | |
| Flash Memory | 32MB |
| SDRAM | 128MB |
| CPU | 880MHz × 2 |
| Mounting | Desk-type |
| Cooling | Fanless, natural cooling |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operating Humidity | 10%~90% (non-condensing) |
| Storage Humidity | 5%~95% (non-condensing) |
| Power Supply Input | 100-240V AC, 50/60Hz |
| Power Adapter Output | 54V DC, 1.11A |
| Max. Power Consumption | <60W |
| Software Features | |
| Internet Connection Types | PPPoE, DHCP, Static IP |
| Max. Throughput | 1000Mbps (Turbo Mode), 600Mbps (Normal Mode) |
| VPN Support | IPSec, OpenVPN, PPTP, L2TP |
| Max. Number of VPN Tunnels | 8 (IPSec), 16 (OpenVPN), 8 (L2TP), 8 (PPTP) |
| Firewall and Security | Stateful firewall, website filtering, anti-network sharing |
| Management | Ruijie Cloud, Web UI, Mobile App |
| Concurrent Client Support | 100 |
