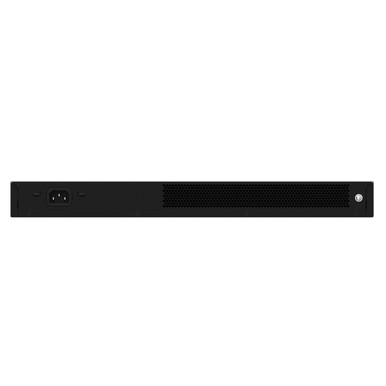

Efficient Cloud-Managed Switch for Modern Access Networks

The Ruijie Reyee RG-ES224GC-V2 is a 24-port gigabit cloud-managed switch designed for reliable and cost-effective deployment in small to medium-sized networks. With a fanless metal housing, full Layer 2 feature set, and seamless cloud integration via Ruijie Cloud and the Reyee App, it delivers quiet performance with simplified management. Ideal for access layer scenarios, it includes VLAN, port isolation, loop prevention, and other advanced monitoring tools to support IP camera-heavy CCTV environments or general network expansion.

Key Features

• 24 Full Gigabit Ports: Equipped with 24 10/100/1000 Mbps RJ45 ports for high-speed, non-blocking performance across all ports.
• Cloud Management Enabled: Supports Ruijie Cloud and Reyee App for remote monitoring, configuration, and zero-touch provisioning.
• Silent Operation: Fanless metal chassis ensures quiet performance in offices, server rooms, or residential setups.
• Robust Switching Performance: Offers 48 Gbps switching capacity and 35.7 Mpps forwarding rate for efficient data handling.
• CCTV Network Optimised: Designed to support up to 80 H.265 cameras (200W) or 40 (400W), with automatic camera recognition and loop detection.
• Layer 2 Network Features: Includes IEEE 802.1Q VLAN, port-based VLAN, storm control, port mirroring, and static MAC binding.
• High Reliability: Withstands up to 8kV air ESD and 6kV surge protection, making it suitable for rugged installations.
• Compact Rackmount Form: Standard 1U design with included rack brackets allows easy integration into network cabinets.

Ideal for businesses seeking a scalable and manageable gigabit switching solution without PoE requirements.
