The Ruijie Reyee RG-RAP2260(E) offers ultra-high-speed connectivity with Wi-Fi 6 technology, delivering wireless throughput up to 3202Mbps. This ensures exceptional network performance, making it perfect for high-demand environments where speed and reliability are crucial.
Key Features:
- 3202 Mbps wireless throughput using Wi-Fi 6 technology
- Supports over 500 client connections
- 2.5 Gbps uplink
- Reyee Mesh technology
- 4x4 MU-MIMO at both 2.4 GHz and 5 GHz frequencies
- 25.4W Power consumption
- CE and ROHS certified
High Client Capacity for Busy Networks
Designed for environments with numerous users, the RG-RAP2260(E) supports over 500 client connections, providing excellent multi-user performance. Whether in a corporate office or a public venue, this access point ensures stable and fast connectivity for all users.
Advanced Uplink Capabilities
Boost your network’s efficiency with a 2.5Gbps uplink port, significantly increasing internet speeds. The dual network ports, including a 1Gbps Base-T option, offer flexible installation and fast data transmission for improved network performance.
Optimised with 4x4 MU-MIMO Technology
Equipped with 4x4 MU-MIMO on both 2.4GHz and 5GHz bands, the RG-RAP2260(E) maximises data throughput by efficiently handling multiple devices simultaneously. This technology ensures higher performance, lower latency, and seamless connectivity for all users.
Seamless Expansion with Reyee Mesh
Expand your network easily with Reyee Mesh technology, allowing multiple access points to connect without complex configurations. The RG-RAP2260(E) enables smooth network expansion, providing reliable coverage for larger areas.
Quick Setup via Ruijie Cloud APP
The Ruijie Cloud APP allows for fast and straightforward deployment of the RG-RAP2260(E), with network setup completed in just 3 minutes. This user-friendly tool ensures easy network management and monitoring from any location.
Compact Design and Flexible Power Options

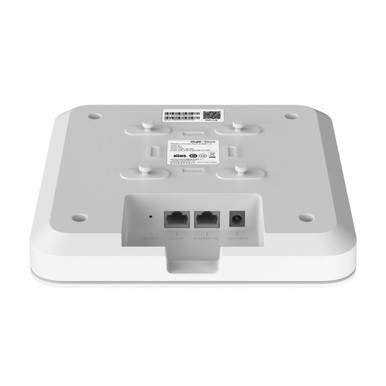

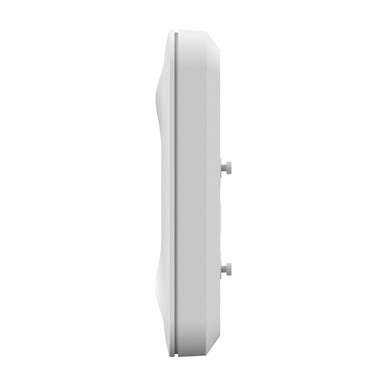

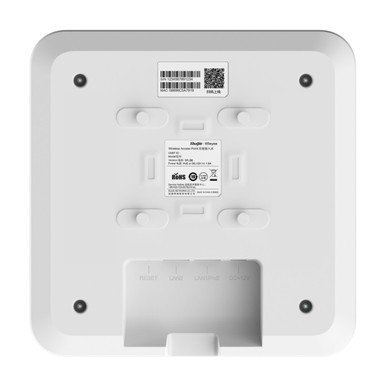

Measuring 220 mm x 220 mm x 35 mm and weighing 1.05 kg, this ceiling-mount access point is designed for versatile installation. It supports both 802.3at PoE and 12V/1.5A DC adaptor power options, making it easy to integrate into various setups.
| Category | Specification | Details |
|---|---|---|
| Model Version | RG-RAP2260(E) | AX3200 Wi-Fi 6 Ceiling Mount Access Point |
| Wireless Protocol | 802.11ax (Wi-Fi 6) | Up to 3202 Mbps throughput |
| Network Port | 1 x 10/100/1000M/2.5G Base-T 1 x 10/100/1000 Base-T |
2.5Gbps uplink |
| Antenna | Type | Built-in Omnidirectional |
| MIMO | 4x4 @2.4 GHz, 4x4 @5 GHz |
Multi-user MIMO |
| Max/Recommended Clients | 512/120 | Supports up to 512 connections, 120 recommended |
| Operating Temperature | 0 °C~40 °C | Suitable for indoor environments |
| Dimensions | 220 mm × 220 mm × 35 mm | |
| Weight | 1.05 kg | Excluding mounting kits |
| Power Supply | 802.3at PoE, 12V/1.5A DC Adaptor | Power via PoE or DC adaptor (PSU sold separately) |
| Power Consumption | <25.4 W | |
| Certifications | Types | CE ROHS |
