Directional Wi-Fi 6 Performance for Long-Range Outdoor Coverage

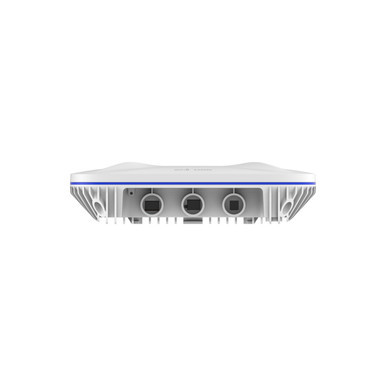

The Ruijie Reyee RG-RAP6260(H)-D is a high-performance directional outdoor Wi-Fi 6 access point engineered for long-range point-to-area deployments. With a combined throughput of up to 5.95Gbps and built-in 9dBi/10dBi directional antennas, it delivers focused wireless coverage up to 1000 metres at 5GHz. It features a 2.5GE uplink port, SFP interface for long-distance fibre backhaul, IP68 weather protection, and seamless Reyee Mesh support, making it ideal for open field, rural, or point-to-point wireless infrastructure.
Key Features
- Directional High-Gain Antennas: Integrated directional antennas provide 9 dBi gain on 5 GHz and 10 dBi on 2.4 GHz for extended, targeted coverage.
- Wi-Fi 6 AX6000 Speeds: Delivers a combined 5950 Mbps via dual-band 4×4 MU-MIMO and 160 MHz channel support.
- Ultra-Long-Range Coverage: Supports up to 1000 metres Wi-Fi range at 5 GHz, ideal for distant outdoor clients.
- 2.5GE and SFP Uplinks: Includes 2.5GbE PoE input and 1 Gbps SFP port for fibre backhaul over 20 km.
- IP68-Grade Enclosure: Sealed design protects against water, dust, lightning (±4kV), and extreme temperatures from –30°C to +65°C.
- Flexible Power Support: Compatible with 802.3bt PoE, 48V DC, or passive 60W input.
- Advanced Security and Roaming: Offers WPA3, Layer 2/3 roaming, VLANs, and 802.1X authentication.
- Mesh Networking Ready: Supports Reyee Mesh and can be centrally managed via Ruijie Cloud or the Reyee App.
Perfect for campuses, farms, parks, or industrial zones where long-distance Wi-Fi with stable throughput is critical.
| Product Specifications | |
|---|---|
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Max Data Rate | 5950 Mbps |
| Radio | Dual-band 4×4 MU-MIMO |
| Antenna Type | Directional (non-omni) |
| Antenna Gain | 10.0 dBi (2.4 GHz), 9.0 dBi (5 GHz) |
| Max Wi-Fi Coverage | 1000 m @ 5 GHz |
| Ethernet Ports | 1 × 2.5GE RJ45 (PoE in) |
| SFP Port | 1 × 1GE SFP |
| Power Input | 802.3bt / 48V DC / Passive 60W |
| Power Consumption | < 40W |

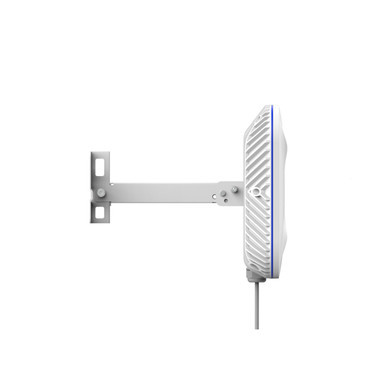

| Mounting | Wall or pole mount |
| Ingress Protection | IP68 rated |
| Lightning Protection | ±4 kV |
| Operating Temperature | –30°C to +65°C |
| Dimensions | 298 × 298 × 65 mm |
| Weight | ≤ 3.5 kg |
| Mesh Support | Reyee Mesh |
| Management | Ruijie Cloud, Reyee App, Web GUI |
| Security | WPA3, WPA2, PSK, 802.1X, DHCP snooping |
