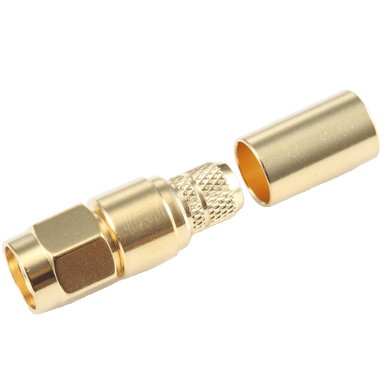

The SMA Male Connector for L-240 Coaxial Cable is a key component for a wide range of wireless technologies. Ideal for UHF, cellular, and Wi-Fi applications, this connector ensures reliable performance with frequencies extending up to 6 GHz. Its compact design and durable construction make it a preferred choice for numerous RF connection needs.

Key Features:

• Frequency Support of up to 6 GHz
• SMA Male (SMA Plug) Connector with a hex-shaped outer body
• Brass body with gold-plating
• Capable of withstanding more than 500 mating cycles
• Low VSWR of < 1.25:1
• Insertion loss of < 0.1 dB

Effortless Installation

This SMA Male connector is designed for an easy crimp and solder attachment to LMR-240 and similar coaxial cables. Installation involves soldering the pin onto the centre conductor, then pushing the outer body over the top until the pin is flush. A 6.5 mm hex die is used to crimp the ferrule, ensuring a secure connection.

High-Performance Specifications

Supporting frequencies from 0 to 6,000 MHz, this connector delivers excellent RF performance with a VSWR of less than 1.25:1 and minimal insertion loss of under 0.1 dB. It has a working voltage of 1000 Vrms and complies with the IEC 61169-15 standard, guaranteeing compatibility and high efficiency in various applications.

Durable and Reliable Construction

Constructed with a brass body and gold plating on both the body and contact, this SMA Male connector is built for longevity and dependability. It operates effectively across a broad temperature range from -65 °C to 165 °C and can withstand over 500 mating cycles, making it suitable for demanding environments.

Rigorous Testing for Performance

The connector meets stringent standards for mechanical shock and vibration, adhering to MIL-STD-202 M.213 C.D and MIL-STD-202 M.204 C.A, respectively. These tests ensure the connector maintains consistent performance under challenging conditions, providing reliable operation in various settings.
