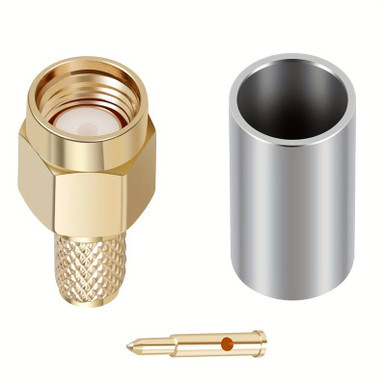

SMA connectors have become the mainstay of wireless technologies thanks to their modest durability and very compact size. The SMA Male connector can be identified by its hex-shaped outer body which rotates to interface by its inner thread. A gold pin protrudes from the centre of the connector which upon threading together couples with the receptacle on the female connector. This straight-bodied SMA Male connector is designed for an ordinary crimp and solder attachment to RG-58 and LMR-195 and equivalent series braided coaxial cables.
Features
- Supports frequencies up to 6 GHz
- Suits all L-195 and RG-58 series coaxial cables
- 5.4 mm (.213") hex die crimp attachment
- Interface compliant to IEC 61169-15
Installation is very simple. After preparing the cable, the pin is soldered onto the centre conductor and outer body pushed over the top until the pin sits flush. A standard 5.4 mm (.213") hex die is used to crimp the ferrule.
