Reliable RF Surge Protection with 4.3-10 Bulkhead Design

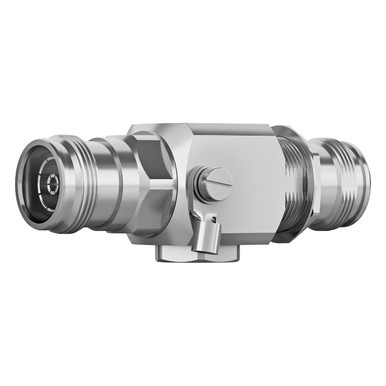

This coaxial surge protector is engineered to protect sensitive RF systems from lightning strikes and electrical surges. Featuring 4.3-10 Female to 4.3-10 Female connectors and supporting frequencies up to 3.8 GHz, it ensures secure signal continuity while offering robust protection in critical telecommunications and wireless infrastructure.
Key Features
- Wide Frequency Range: Operates effectively up to 3.8 GHz, supporting various RF and telecom applications.
- 4.3-10 Female Connectors: Provides a low-loss, high-integrity connection ideal for high-frequency and high-density environments.
- Bulkhead Mounting Design: Allows secure panel installation for stable grounding and simplified integration into enclosures or racks.
- High Surge Protection: Shields sensitive equipment from voltage transients caused by lightning or electrical surges.
- Low Insertion Loss: Maintains excellent RF performance with minimal signal attenuation across the operating range.
- Rugged Construction: Precision-built to meet industrial-grade standards for reliability in harsh conditions.
This surge protector delivers essential protection and stability for mission-critical RF systems, ensuring long-term equipment reliability.
Photographer/Copyright: Telegärtner Karl Gärtner GmbH
| Specifications | |
|---|---|
| Feature | Details |
| Nominal DC Spark-over Voltage | 75 V |
| Frequency | 0...3.8 GHz |
| Return Loss | Typical: 30 dB @ 2.7 GHz; 20 dB @ 3.8 GHz |
| Insertion Loss | Typical: 0.1 dB @ 2.7 GHz; 0.25 dB @ 3.8 GHz |
| Impedance | 50 Ω |
| Max. Transmit Power | ≤100 mW (20 dBm) (adjustable) |
| Operating Temperature | -40°C to +85°C |
| Protection Class | IP67 (IEC 60529) |
| Isolation Resistance | >5 GΩ |
| Contact Resistance (Outer) | < 2 mΩ |
| Contact Resistance (Inner) | < 0.5 mΩ |
| Mating Life | >100 cycles |
| Impulse Discharge Current | 10 x 15 kA (8/20µs) |
| Operating Humidity | 5% to 95% Noncondensing |
| Storage Humidity | 5% to 95% Noncondensing |
| Weight | Approx. 78 g |
| Dimensions | Various (refer to document for specific measurements) |
| Materials |
Inner Conductor: CuBe2 / CuZn39Pb3 Outer Contact: CuSnZn3 Other Metal Parts: Cu2Ag5 Insulator: PTFE / PS Gasket: Silicone |
| Compliance | 2011/65/EU RoHS compliant |
| Standards | IEC 61169-54 |
| Recommended Coupling Torque | 5 Nm |
| Recommended Torque for Panel Mounting | 10 Nm |
| Panel Piercing | Z150 |
| Impulse Discharge Current | 10 x 15 kA (8/20µs) |
