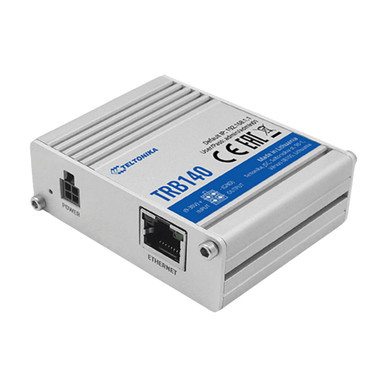

The Teltonika TRB140 is a compact and highly efficient industrial gateway designed for applications where reliable connectivity and remote management are crucial. Supporting LTE Cat 4 with speeds of up to 150 Mbps, this device ensures consistent communication across various sectors, including energy, utilities, and industrial automation. Its lightweight design and robust build make it an ideal choice for mission-critical operations that demand a compact yet powerful solution.
Key Features:
- LTE Cat 4 speeds up to 150 Mbps
- Single Ethernet port (10/100 Mbps)
- Passive PoE support, 9-30 V input
- USB 2.0 Slave interface
- Digital input/output
- Compact aluminium housing
- DIN rail mounting
- Teltonika RMS for remote management and monitoring
- SIM slot
- Firewall with attack prevention and DDOS protection
- Low power consumption, under 5 W
High-Speed LTE Connectivity
Equipped with LTE Cat 4 technology, the TRB140 provides download speeds of up to 150 Mbps and upload speeds up to 50 Mbps, ensuring fast and stable mobile network access. The device also supports fallback to 3G and 2G networks, allowing for flexible operation in regions with limited LTE coverage.
Ethernet Port for Wired Networks
The TRB140 features a 10/100/1000 Mbps Ethernet port, enabling secure wired network connections for devices requiring stable communication. This port can also be used for passive PoE power supply, providing flexibility in deployment, especially in remote or industrial environments.
Advanced I/O for Enhanced Control
With its digital input and output options, the TRB140 allows users to remotely monitor and control devices or sensors. The digital I/O functionality is crucial for triggering alarms, monitoring events, or controlling equipment based on predefined conditions, making it perfect for automation and monitoring tasks.
Secure and Scalable VPN Support
The TRB140 offers a wide range of VPN options, including OpenVPN, IPsec, and WireGuard, ensuring secure communication between devices. These features allow businesses to implement encrypted connections for sensitive data transfers, supporting scalable and reliable security solutions across multiple sites or devices.
Efficient Power Management
This gateway features a 9–30 VDC power input with surge protection, ensuring reliable operation even in harsh environments. The passive PoE functionality through the Ethernet port simplifies installation, reducing the need for additional power cables while still providing reliable connectivity.
Lightweight and Durable Design
Designed with an aluminium housing, the TRB140 is both lightweight and durable, weighing just 134 grams. Its compact dimensions (74.5 x 64.4 x 25 mm) allow for easy installation in space-constrained environments, while its IP30 rating ensures protection against dust, making it suitable for industrial settings.
| Category | Specification | Details |
|---|---|---|
| Model | TRB140 | 4G LTE Cat 4 Gateway |
| Mobile Connectivity | 4G LTE Cat 4 | Up to 150 Mbps download 50 Mbps upload |
| Ethernet | Port | 1 x RJ45 10/100/1000 Mbps |
| Power | Power Input | 9-30 VDC, reverse polarity protection |
| PoE | Passive PoE Mode B (9-30 VDC) |
|
| USB | Port | 1 x Micro-USB (Virtual Network Interface) |
| I/O | Digital Input | 0-6 V (Low) 8-30 V (High) |
| Digital Output | Open Collector Output 30 V, 300 mA |
|
| SIM | Slot | 1 x Mini SIM (2FF) |
| Physical Dimensions | W x H x D | 74.5 x 25 x 64.4 mm |
| Weight | Net Weight | 134 g |
| Operating Environment | Temperature | -40 °C to 75 °C |
| Humidity | 10% to 90% (non-condensing) | |
| Ingress Protection | IP Rating | IP30 |
| Mounting | Options | DIN Rail Flat Surface |
| Certifications | Standards | CE/RED EAC RoHS WEEE |
