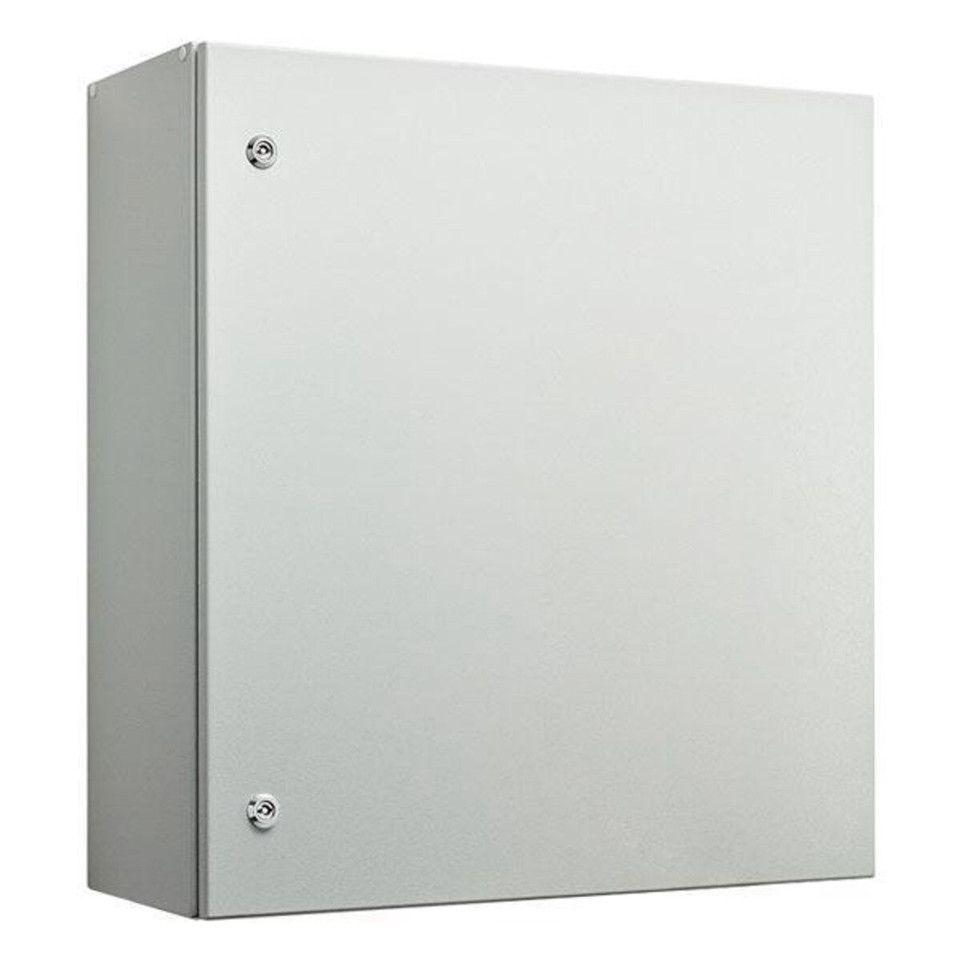

Durable enclosure engineered for heavy-duty electrical system protection
This steel enclosure delivers strong environmental protection, high impact resistance, and dependable performance for industrial and commercial electrical installations. Its galvanised steel construction, precision welding, and long-life polyurethane seal ensure reliability in demanding environments, while the reinforced door and integrated cable management support clean and secure equipment mounting.
Key Features
- IP66 and IK10 protection: Provides complete dust protection, strong water resistance, and high mechanical impact durability.
- Heavy-duty galvanised steel construction: Manufactured from 1.2 mm and 1.5 mm steel panels with continuous seam welding for long-term strength.
- Reinforced single door: 1.5 mm galvanised steel door with concealed removable hinges, captive pins, and a 110° opening angle.
- High-quality polyurethane seal: Machine-applied full-perimeter FIP gasket ensures long-lasting sealing and temperature resistance.
- Secure locking mechanism: Equipped with a 5 mm double-bit quarter-turn lock and key for reliable protection.
- Pre-installed device mounting plate: Includes a strong 1.5 mm steel mounting plate for immediate component installation.
- Integrated cable management system: Internal cable rails and a bottom gland plate support organised wiring and easy entry.
- Durable powder-coated finish: Textured RAL7035 epoxy polyester coating ensures corrosion resistance with an 80–120 micron surface thickness.
- High load capability: Rated to carry up to 173 kg of internal equipment safely.
- Certified performance: Built to meet major electrical enclosure standards for quality, safety, and reliability.
This enclosure provides exceptional durability, secure equipment mounting, and strong environmental protection for industrial electrical systems.
