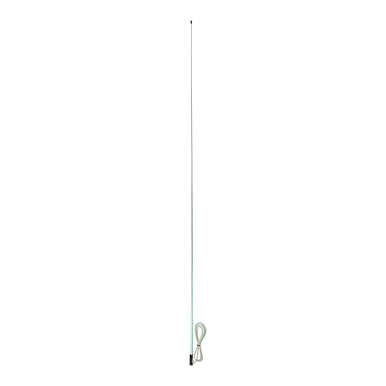

ZCG VHF Marine Deck Mount Antenna, 156 to 162 MHz, 5 dBi, 4.5m UHF Male
Enhance your marine communication with the ZCG VHF Marine Deck Mount Antenna. Designed specifically for the maritime environment, this antenna ensures reliable and clear VHF communication within the 156 to 162 MHz frequency range. Whether you're navigating coastal waters or cruising offshore, this antenna provides excellent performance and durability, making it an essential addition to your marine equipment.
Key Features:
- Frequency Range: 156 to 162 MHz
- Gain: 5 dBi
- Construction: Marine-grade durability
- Mount: Deck mount design
- Connector: 4.5m cable with UHF Male
- Performance: Reliable in harsh conditions
- Application: Suitable for various marine vessels
| Specification Category | Details |
|---|---|
| Frequency | 156-162 MHz - Marine VHF communications |
| Bandwidth | Full frequency range stated - 6 MHz |
| Gain | 5.1 dBi |
| Tuning | 156-158 MHz <1.5:1 - Emergency channel 21 & 22, 158-162 MHz <2:1 |
| Impedance | 50 Ohms |
| H Plane Beamwidth | 360° omnidirectional ± 0.5 dBd |
| Maximum Power | 50 Watts |
| Polarisation | Vertical, not tilted/leaning when in use, laid flat along vessel during trailered transit |
| Construction | White tapered fibreglass radome, chrome mount ferrule, 4.5m external RG58 cable and connector, not fitted |
| Connector | UHF male PL259 solder pin twist connector supplied, not fitted |
| Dimensions | Height: 2.4m, Diameter: 28.6mm, Mount thread: 1-1/4" UNS female |
| Weight | 1.1 kg |
