The 2J Brick 5GNR/4GLTE/3G/2G High-Performance Mini Embedded Surface Mount Antenna offers a ground plane dependent internal antenna designed with a compact form factor ideal for space-restricted device integration. This antenna is manufactured out of high-grade fiberglass, a material known for durability and resistance to extreme temperatures ranging between -40C and +85C. Proper antenna placement is fundamental for optimal performance and ideal for extremely small PCB application requirements by taking up minimal space without compromising performance.
FEATURES:
- Ultra Wide band Antenna
- SMT Brick Embedded Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Dependent
- 3.1 dBi 5G NR Peak Gain
- High Performance
- Fiberglass Material
- Compact Size
- Easy to Integrate

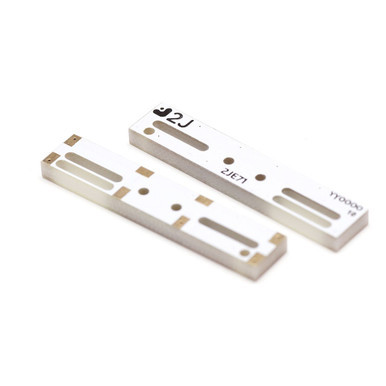

2J Brick 5GNR/4GLTE/3G/2G High-Performance Mini Embedded Surface Mount Antenna 2JE71
The 2J Brick 5GNR/4GLTE/3G/2G High-Performance Mini Embedded Surface Mount Antenna is designed with omni-directional coverage and is optimized for 360-degree signal strength while maintaining stable gains and efficiency across all bands. The new 5GNR technology enhances mobile broadband and ultra-reliable low-latency communications. Edge and EV-DO are designed for digital mobile phone technology and wireless internet access improving data transmission while maintaining higher bit rates and advanced multiplexing techniques resulting in increased capacity and maximum throughput.
connection 1
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Efficiency (%) | ~55.2, ~61.4, ~60.4, ~40.0 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Return Loss (dB) | ~-6.7, ~-10.3, ~-10.2, ~-5.7 |
| VSWR | ~3.1:1, ~2.0:1, ~2.0:1, ~3.5:1 |
| Peak Gain (dBi) | ~0.5, ~2.7, ~3.1, ~2.2 |
| Impedance (Ohm) | 50 |
| Max. Input Power (W) | 25 |
