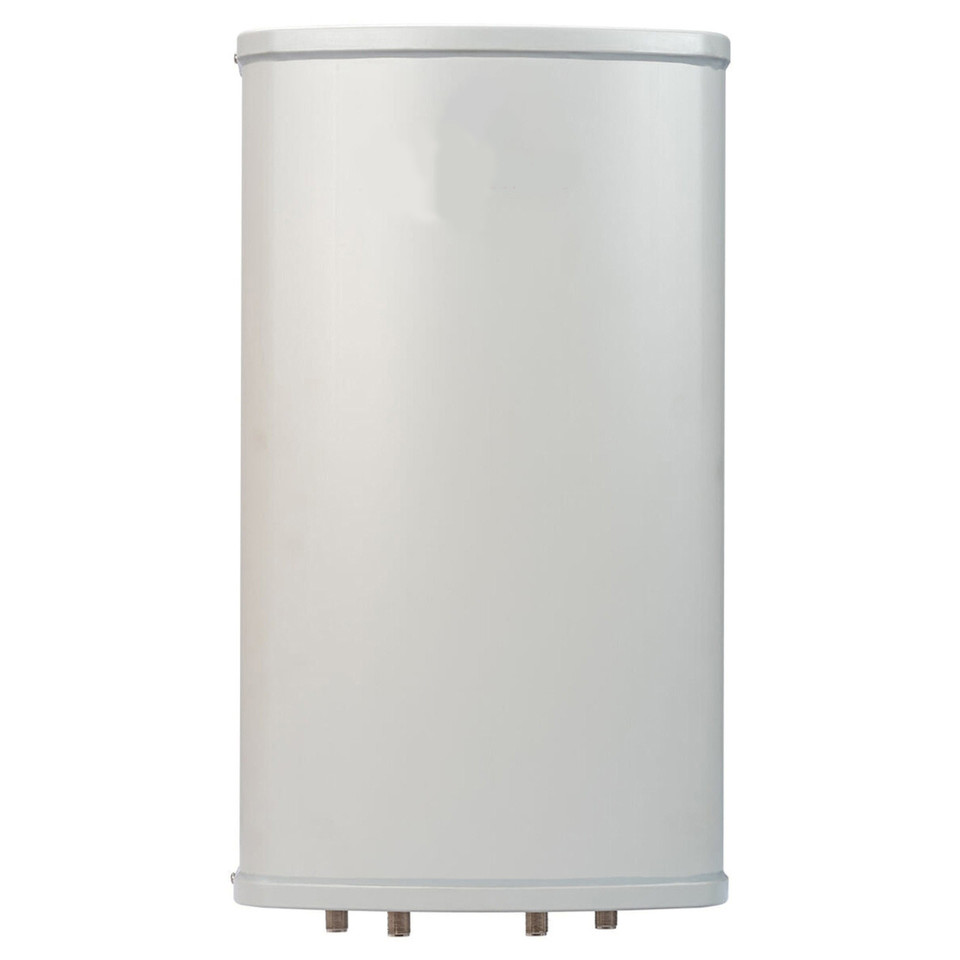

High-performance outdoor panel antenna for reliable wideband signal coverage
This outdoor 4x4 MIMO panel antenna is designed to improve 4G and 5G network performance across a broad 700 to 3800 MHz range. Its high-gain design with dual ±45° slant polarisation ensures stronger reception and transmission, reducing latency and boosting throughput even in challenging rural or urban conditions. Built with a durable aluminium body, it withstands harsh environments while delivering consistent connectivity for demanding applications.
Key Features
- Wide frequency range: Operates from 698 MHz to 3800 MHz, ensuring compatibility with 4G and 5G networks.
- 4x4 MIMO configuration: Supports multiple data streams, enhancing bandwidth and reducing latency.
- High gain performance: Provides up to 9 dBi peak gain for improved signal strength and stability.
- Dual slant polarisation: ±45° configuration optimises reception and transmission across environments.
- Durable construction: Made from aluminium, operating between -40 °C and +65 °C for outdoor reliability.
- 4.3-10 female connectors: Low-PIM, weather-resistant connectors suitable for modern telecom installations.
This antenna is a robust solution for improving connectivity, delivering reliable performance in both rural and metropolitan deployments.
| Product Specifications | |
|---|---|
| Frequency Range | 698 – 3800 MHz |
| Configuration | 4x4 MIMO |
| Polarisation | Dual Slant ±45° |
| Peak Gain | 8 – 9 dBi |
| VSWR | < 1.8:1 |
| Input Impedance | 50 Ω |
| Input Power | 100 W |
| Connectors | 4 x 4.3-10 Female |
| Front-to-Back Ratio | > 18 – 22 dB |
| Inter-Port Isolation | > 20 – 22 dB |
| Material | Aluminium |
| Operating Temperature | -40 °C to +65 °C |
| Dimensions | 500 × 286 × 132 mm |
