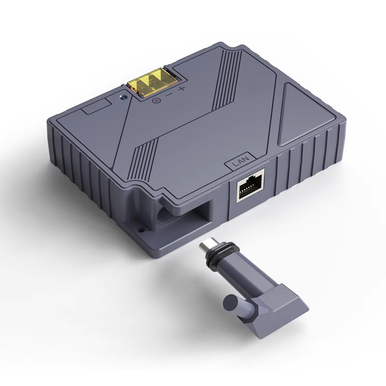

The Powertec Starlink Gen2 DC/DC Converter enables you to power a Gen2 Actuated Starlink dish from 9-36V. Ideal for economically powering the dish in off grid applications in vehicles, caravans, motorhomes, homes and from solar.
Powering your dish from DC, instead of AC with an inverter, could save up to 15% in power consumption. When you are off grid using batteries, this can be a significant saving.
Connection to the Starlink dish is plug and play, and the existing Starlink router can be replaced with a 12V WiFi router. The existing Starlink Gen2 SPX network cable is used to power the dish, without the need to cut and terminate the cable.
Note: Does not support the Gen2 High Performance dish.
Features
- Designed for off grid caravans, motorhomes, homes, vehicles and remote sites
- Enables a Starlink Gen2 Actuated dish to be powered from 9-36V DC
- Plug and play installation
- Compact in size
- 150W power output
- 10/100/1000 LAN Port for connecting to router or computer
- Starlink SPX Port for connecting to dish
- Australian RCM Approved
Install Diagram
| Specification | Details |
|---|---|
| Interface | SPX x1, LAN x1, Power |
| Pin Configuration | +V: 1,2,3,6; -V: 4,5,7,8 |
| Network Speed | 10/100/1000Mbps (Gigabit Ethernet) |
| Input | DC 9-36V/15A |
| Input/Output | DC 56V/3A Max |
| Surge Protection | ± 8KV (Differential), Class A |
| ESD Protection | ± 8KV (Contact), ± 15KV (Air), Class A |
| Operating Temperature | -20~+55℃ |
| Operating Humidity | 10% - 90% (Non-condensing) |
| Storage Temperature | -40 to +70 °C |
| Power | 150W Max |
