Reliable Power and Network Solution for High-Demand Installations

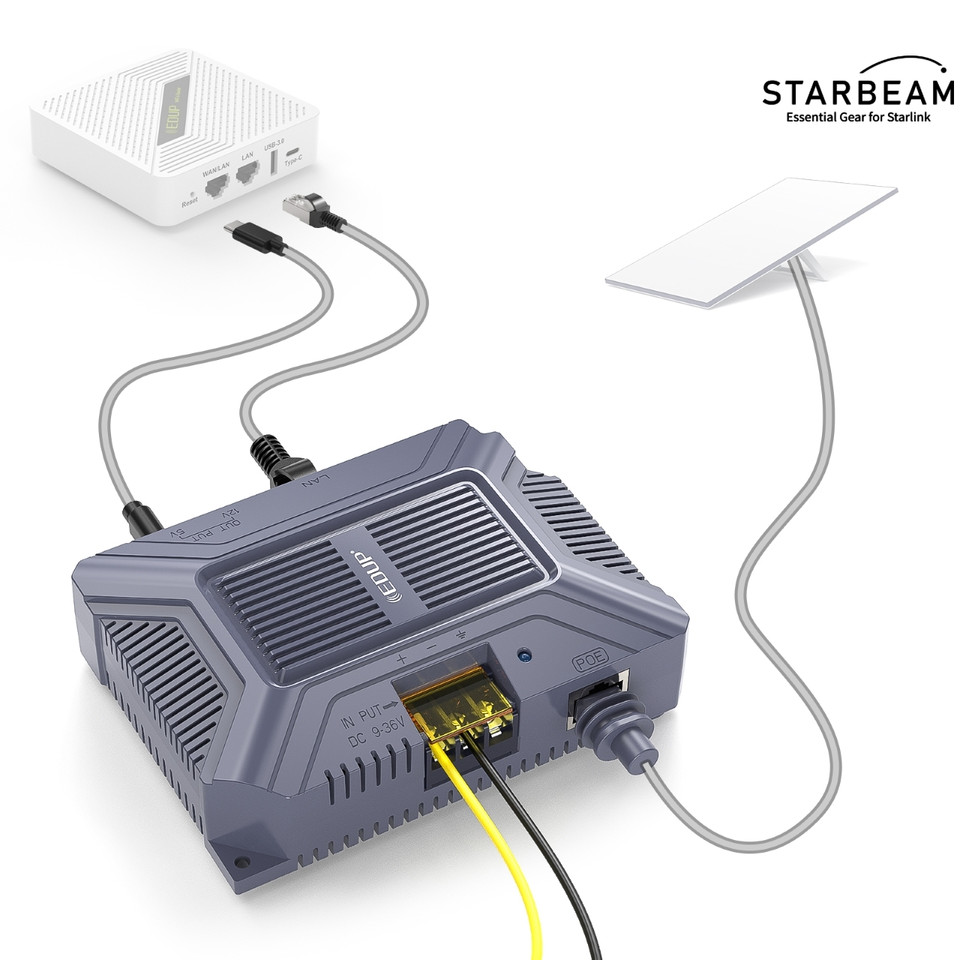

This compact unit combines powerful PoE capability, flexible charging outputs, and rugged protection for demanding connectivity environments. With Gigabit Ethernet performance and built-in safety features, it ensures reliable power and data delivery even under challenging conditions.
Key Features
- 200W GigE Passive PoE Injector: Provides a robust 200W output from a 9–36V DC input range, delivering stable PoE power for high-demand devices.
- Flexible Charging Options: Includes USB-A (12V/3A) and USB-C (5V/3A) outputs, supporting fast and versatile charging across a wide range of devices.

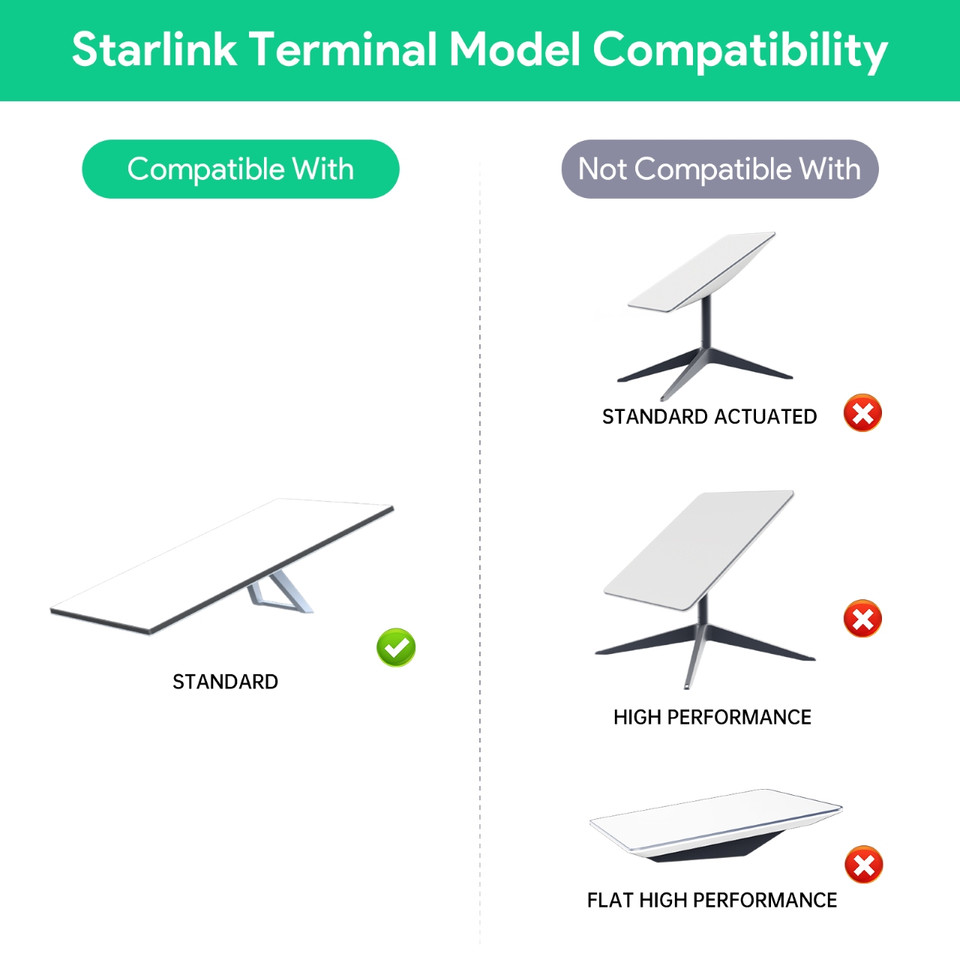

- Optimised for Starlink Standard (Gen 3): Fully compatible to ensure seamless satellite internet performance and stable connectivity.
- Fast Network Performance: Features a Gigabit Ethernet (1000Mbps) port for rapid and reliable data transfer without bottlenecks.
- Comprehensive Protection: Built-in surge protection up to ±8KV and ESD protection (±15KV air, ±8KV contact) safeguard devices, with an operating range of -20°C to +55°C for dependable performance.
Designed to deliver both power and connectivity, this solution is ideal for professional setups requiring efficiency, safety, and compatibility.
| Parameter | Value |
| Pin Configuration | +V: 1, 2, 3, 6; -V: 4, 5, 7, 8 |
| Interface | 1 × LAN, 1 × SPX PoE, 1 × 3-Pin Power, 1 × USB Type-C, 1 × USB-A |
| Network Speed | 10/100/1000 Mbps |
| Input | DC 9–36 V (minimum input power: 200 W) |
| SPX PoE Output | 54 V, 3 A max. |
| USB-A Output | 12 V, 3 A max. |
| USB Type-C Output | 5 V, 3 A max. |
| Surge Protection | ±8 kV (Differential), Class A |
| ESD Protection | ±8 kV (Contact), ±15 kV (Air), Class A |
| Operating Temperature | -20 to +55°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Storage Temperature | -40 to +70°C |
| Power | 200 W |
| Regulatory Approvals | RCM |
