Outdoor 5GHz Wireless Bridge for Stable Long-Range Connectivity
The Ruijie Reyee RG-EST350G is a 5GHz outdoor wireless bridge designed for long-distance point-to-point and point-to-multipoint applications. It supports up to 867 Mbps wireless throughput and delivers stable performance over distances up to 5 kilometres. Built with a 16 dBi directional antenna and IP55-rated housing, it withstands demanding outdoor environments. Three Gigabit Ethernet ports and flexible power options, including 802.3af/at PoE, provide versatile installation across surveillance, remote access, or backhaul links. Managed via Ruijie Cloud, it ensures seamless deployment and remote monitoring.
Key Features
- 5GHz Band with 867 Mbps Throughput: Delivers high-speed wireless links for surveillance, access points or interbuilding connections.
- Long-Range Transmission: Supports point-to-point communication over distances of up to 5 km in open environments.
- 16 dBi Directional Antenna: Provides focused signal strength for increased transmission reliability and reduced interference.
- IP55-Rated Enclosure: Built to operate in outdoor conditions with protection from dust and water.
- Three Gigabit Ports: Offers flexible connectivity for additional networking equipment or daisy-chaining devices.
- Multiple Power Options: Supports 12V DC, Passive PoE (24V), and 802.3af/at PoE for flexible installation scenarios.
- Ruijie Cloud Management: Enables remote configuration, monitoring, and firmware updates through a unified platform.
- Plug-and-Play Pairing: Devices come pre-configured for immediate deployment without manual pairing.
- Easy Pairing: One touch pairing button
Reliable wireless bridge solution for secure outdoor point-to-point applications.
How to Pair
1) Power both units up

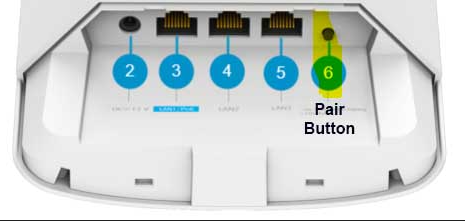

2) Press and hold the One-Touch Pairing button for less than 2s on the unit you want to be the base unit: The wireless bridge pairs with the remote wireless bridge unit (the signal LED blinks during pairing).
3) Once connected the signal LED will be solid green. The LED will stop blinking after 1 minute if no bridge connection is established.
| Product Specifications | |
|---|---|
| Model | RG-EST350G |
| Frequency Band | 5GHz |
| Wireless Speed | 867 Mbps |
| Transmission Distance | Up to 5 km (Line-of-Sight) |
| Antenna Type | 16 dBi Directional |
| Ethernet Ports | 3 × Gigabit Ethernet |
| Power Input | 12V DC, Passive PoE (24V), 802.3af/at PoE |
| IP Rating | IP55 (Weatherproof) |
| Management | Ruijie Cloud Platform |
| Pairing Method | Pre-configured Plug-and-Play |
| Mounting | Pole or Wall Mount |
| Application | Point-to-Point / Point-to-Multipoint |
