Extend Secure, High-Speed Wireless Links Across Wide Outdoor Spaces

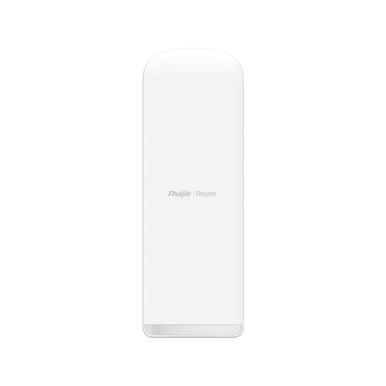

The RG-EST450G is a 5 GHz wireless bridge designed for long-range point-to-point and point-to-multipoint connections. Featuring a 120° built-in antenna and 15 dBi gain, it delivers up to 867 Mbps throughput, making it ideal for linking buildings, CCTV systems, or remote sites. With three Gigabit ports and support for 12 V DC, passive PoE, and 802.3af/at power options, it ensures flexible deployment. Its IP55-rated enclosure provides dependable outdoor durability and long-term performance.
Key Features
- Wide-Angle Coverage: 120° horizontal and 13° vertical beamwidth for broad area connectivity.
- High-Speed Throughput: Supports up to 867 Mbps on the 5 GHz band using 2x2 MIMO.
- Flexible Power Options: Compatible with 12 V DC, passive PoE, and 802.3af/at standards.
- Multiple Gigabit Ports: Equipped with three 10/100/1000 Mbps Ethernet ports for versatile networking.
- Robust Outdoor Design: IP55-rated housing withstands harsh weather conditions.
- Easy Pairing: One-touch setup simplifies point-to-multipoint configurations.
- Advanced Networking: Supports TDMA and Self-Organizing Network (SON) for efficient data transmission.
- Integrated Tools: Includes alignment tool and spectrum scan for optimal link performance.
Ideal for extending high-speed networks across campuses, industrial sites, or rural areas with minimal infrastructure.
| Wireless Specifications | |
|---|---|
| Frequency Bands | 2.4 GHz and 5 GHz |
| Wireless Standards | 802.11a/n/ac (5 GHz), 802.11b/g/n (2.4 GHz) |
| Max Data Rate | 867 Mbps (5 GHz), 150 Mbps (2.4 GHz) |
| Modulation | BPSK to 256-QAM |
| Transmit Power | 26 dBm (5 GHz), 20 dBm (2.4 GHz) |
| Receiver Sensitivity | -91 dBm to -51 dBm (varies by modulation) |
| Hardware Features | |
| Ethernet Ports | 3 x 10/100/1000 Mbps |
| Power Options | 12 V DC, Passive PoE, 802.3af/at |
| Power Consumption | <12 W |
| LED Indicators | System, Port, Signal Strength |
| Reset Button | Yes |
| Antenna & Coverage | |
| Antenna Type | Built-in directional |
| Antenna Gain | 15 dBi (5 GHz), 2 dBi (2.4 GHz) |
| Beamwidth | 120° horizontal, 13° vertical |
| Maximum Distance | Up to 5 km |
| Environmental | |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| IP Rating | IP55 |
| Physical | |
| Dimensions | 355 x 124 x 48 mm |
| Weight | 0.83 kg |
| Mounting | Pole and wall mountable |
