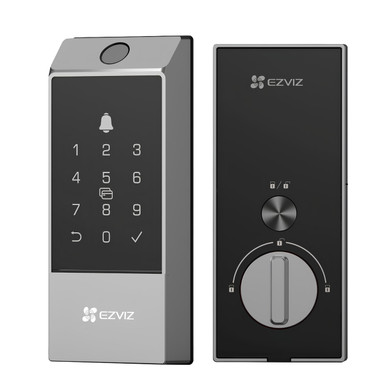

Smart Deadbolt Lock with App, Keypad, and Fingerprint Access
The DL04 Pro is a keyless smart deadbolt that combines advanced security with convenient entry options. Users can unlock via fingerprint, keypad PIN, Bluetooth, proximity card, or remotely through the EZVIZ App. With direct Wi-Fi connectivity, anti-peeping features, and support for real-time alerts, this lock enhances home security without needing additional hubs or wiring. It also integrates with select EZVIZ cameras and sensors for automated protection.
Key Features
- Fingerprint Unlocking: Fast local recognition with support for up to 50 stored fingerprints.
- Keypad and App Access: Use up to 50 passcodes, remote unlock via app, or assign temporary visitor codes.
- Proximity Card Support: Includes 2 cards and supports up to 50 for quick, contactless access.
- Real-Time Alerts and Logs: Receive notifications on unlock events, low battery, tampering, and door status.
- Direct Wi-Fi Connection: No hub required—connects directly to 2.4 GHz home Wi-Fi for smart control.
- Anti-Peeping Code Entry: Prevent code theft with long digit sequences that mask true passcodes.
- Tamper and Force Alarm: Triggers loud alert if forcibly removed or repeatedly accessed incorrectly.
- Smart Integration with Cameras: Works with compatible EZVIZ cameras for linked video upon unlock.
- Emergency Power & Manual Key: USB-C emergency charge port and mechanical key included for backup access.
- Weather-Resistant Design: IP55-rated front panel withstands dust, rain, and outdoor conditions.
Secure, versatile, and hub-free, the DL04 Pro delivers flexible access and robust protection for modern smart homes.
| Product Specifications | |
|---|---|
| Model | CS-DL04 Pro |
| Unlock Methods | Fingerprint, PIN code, App remote, Bluetooth, Proximity card, Mechanical key |
| Fingerprint Capacity | Up to 50 users |
| PIN Code Capacity | Up to 50 sets (6 to 10 digits) |
| Card Capacity | Up to 50 cards |
| Bluetooth Key | Up to 50 keys supported |
| Connectivity | 2.4 GHz Wi-Fi (no hub required) |
| Integration | EZVIZ App, EZVIZ Cameras (select models) |
| Tamper Protection | Yes (lockout after 5 failed attempts in 5 minutes) |
| Alerts | Unlock events, door-left-open, tamper, low battery, real-time push notifications |
| Auto Lock | Supports (with optional EZVIZ door sensor) |
| Privacy Mode | Enabled via app |
| Power Supply | 4 × AA alkaline batteries |
| Emergency Charging | USB-C port |
| Weatherproof Rating | IP55 (front panel only) |
| Operating Temperature | -25°C to 55°C |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Front Panel Dimensions | 160 × 67 × 25 mm |
| Rear Panel Dimensions | 166 × 70 × 28.5 mm |
| Certifications | CE, EMC, LVD, RED, RoHS, BHMA, REACH, WEEE |
