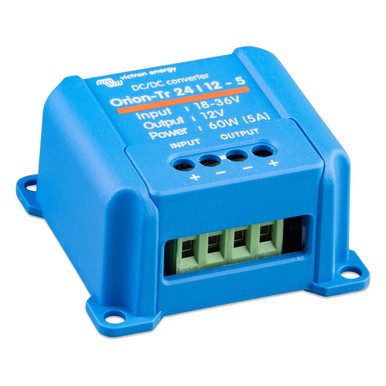

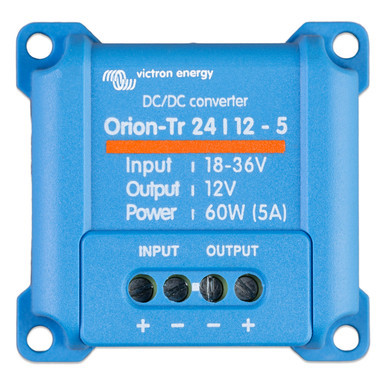

The Victron Orion-Tr 24/12-5 (60W) DC-DC converter is an advanced and compact power solution designed for industrial applications. Efficiently converting 24V DC to a stable 12V DC output at 60W, it boasts a remarkable 96% efficiency, minimizing energy loss and optimizing power usage. Using high-frequency switching technology for precise regulation, it ensures reliability under varying loads. Its rugged design makes it ideal for automotive, marine, and industrial environments, offering enhanced protection against dust and moisture for long-term reliability.
Designed for efficiency, reliability, and versatility, the Victron Orion-Tr 24/12-5 (60W) DC-DC converter empowers your power management system with precise and stable voltage conversion. Explore the advanced capabilities of this converter today and experience the superior performance that Victron's engineering excellence delivers.
FEATURES:
- High-performance DC-DC converter for seamless voltage adaptation
- Efficiently converts 24V DC input to a stable 12V DC output
- Constant 60W power supply for diverse industrial applications
- Impressive efficiency rating of up to 96% for minimal energy loss
- High-frequency switching technology ensures precise regulation
- Rugged and compact design for reliable operation in challenging environments
- Conformal coating for enhanced protection against dust and moisture
- Comprehensive protection features: overvoltage, overcurrent, and short-circuit protection
- An intelligent thermal management system prevents overheating
- Easy installation and user-friendly interface for hassle-free setup
- Wide input voltage range for compatibility with various electrical systems
- Suitable for automotive, marine, and industrial applications
- Versatile power solution for off-grid and battery-based systems
| Feature | Orion-Tr 24/12-5 | Orion-Tr 24/12-10 | Orion-Tr 24/12-15 | Orion-Tr 24/12-20 |
|---|---|---|---|---|
| Input Voltage Range | 18-35V | 18-35V | 18-35V | 18-35V |
| Output Voltage | 12.7V | 12.5V | 12.5V | 12.5V |
| Efficiency | 95% | 97% | 97% | 97% |
| Continuous Output Current | 5A | 10A | 15A | 20A |
| Max. Output Current | 7A | 12A | 20A | 25A |
| Galvanic Isolation | No | No | No | No |
| Off Load Current | < 20mA | < 45mA | < 35mA | < 35mA |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) | |||
| DC Connection | Screw terminals | |||
| Maximum Cable Cross-Section | 3.3 mm² (AWG12) | 6 mm² (AWG10) | 6 mm² (AWG10) | 6 mm² (AWG10) |
| Weight | 0.09 kg (0.20 lbs) | 0.2 kg (0.44 lbs) | 0.25 kg (0.55 lbs) | 0.25 kg (0.55 lbs) |
| Dimensions (H x W x D) | 53 x 51 x 27 mm (2.1 x 2 x 1.1 inches) | 73 x 94 x 37 mm (2.9 x 3.7 x 1.5 inches) | 73 x 94 x 45 mm (2.9 x 3.7 x 1.8 inches) | 73 x 94 x 45 mm (2.9 x 3.7 x 1.8 inches) |
| Standards (Safety) | EN 60950 | |||
| Standards (Emission) | EN 61000-6-3, EN 55014-1 | |||
| Standards (Immunity) | EN 61000-6-2, EN 61000-6-1, EN 55014-2 | |||
| Standards (Automotive Directive) | ECE R10-4 | |||
